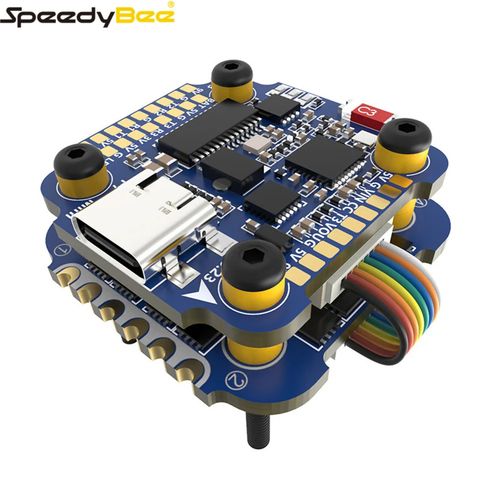

SpeedyBee F7 Mini 35A BLHeli_S Stack

Short Description:

SpeedyBee F7 Mini 35A stack combines an STM32F722 flight controller, MPU6000 gyro and 35A BLHeli_S 4-in-1 ESC in a compact 20 20 mm format.

Product Name: SpeedyBee F7 Mini 35A BLHeli_S Stack
Product Type: 20 × 20 mm Flight Controller and 4-in-1 ESC Stack
MCU: STM32F722
Gyroscope: MPU6000, Pre-May 2022 Batch
Blackbox Memory: 8 MB Onboard Flash
OSD Chip: AT7456E
Firmware: Betaflight
Firmware Target: SPEEDYBEEF7MINI
Input Voltage: 3–6S LiPo
ESC Continuous Current: 35 A × 4

Send email to us

Product Detail

FAQ

Technical Highlights

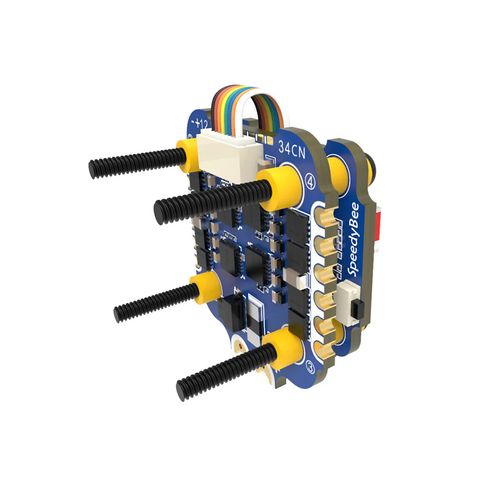

Compact F7 Flight Controller and ESC Stack

The stack combines an STM32F722 flight controller with a 35 A four-channel BLHeli_S ESC. Its 20 × 20 mm mounting pattern is designed for space-limited FPV builds.

MPU6000 Version with Dedicated Firmware Target

The board revision shown in the supplied material corresponds to the pre-May 2022 MPU6000 batch and uses the SPEEDYBEEF7MINI Betaflight firmware target.

Wireless Parameter Configuration

Integrated Bluetooth 4.0 supports flight-controller and BLHeli_S ESC parameter configuration through the SpeedyBee app when MSP is enabled on UART6 at 115200 baud.

Analog and Digital Video Integration

The flight controller includes an AT7456E analog OSD chip, a Betaflight camera-control pad and soldering pads for supported digital video equipment.

35 A BLHeli_S Four-in-One ESC

The included ESC provides four 35 A continuous-current channels, a 45 A five-second burst rating and DSHOT300 or DSHOT600 control for 3–6S LiPo systems.

Flight Controller Specifications

Flight Controller	SpeedyBee F7 Mini
MCU	STM32F722
IMU	MPU6000 for the pre-May 2022 batch shown
Barometer	No onboard barometer
OSD	AT7456E analog OSD
Blackbox Storage	8 MB onboard flash
USB	USB Type-C
Bluetooth	Bluetooth 4.0 for SpeedyBee app configuration
Full UARTs	3: UART1, UART2 and UART3
ESC Telemetry UART	R4 on UART4
Camera Control	Betaflight camera-control pad
LED Output	WS2812 LED pad
Buzzer Output	BZ+ and BZ− pads for a 5 V buzzer
Current Sensor	Supported; scale 250 and offset −500 with the supplied ESC
Firmware	Betaflight
Firmware Target	SPEEDYBEEF7MINI

ESC Specifications

ESC Model	SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC
ESC Firmware	BLHeli_S JH40
Continuous Current	35 A × 4
Burst Current	45 A for 5 seconds
Battery Input	3–6S LiPo
Control Protocol	DSHOT300 and DSHOT600
Power Output	VBAT
Current Sensor	Supported; scale 250 and offset −500
ESC Telemetry	No ESC telemetry output

Power and Physical Specifications

Input Voltage	3–6S LiPo
5 V Output	Five 5 V pads plus one BZ+ output; 2.5 A total load
9 V Output	Two 9 V output groups; 2 A total load
3.3 V Output	Up to 500 mA
Mounting Pattern	20 × 20 mm
FC Mounting Holes	Ø3.5 mm
ESC Mounting Holes	Ø3.6 mm

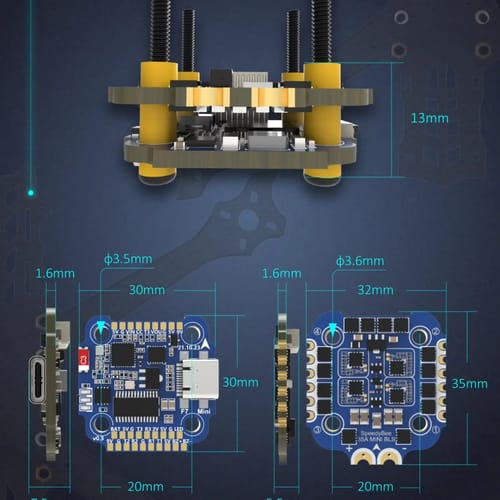

FC Dimensions	30 × 30 × 7.5 mm
ESC Dimensions	35 × 35 × 5.5 mm
Assembled Stack Height	Approximately 13 mm, excluding protruding mounting screws
FC Weight	5.7 g
ESC Weight	7 g

Integration Notes

Use the SPEEDYBEEF7MINI target only for the MPU6000 batch shown in the supplied material.
Later BMI270 boards require the SPEEDYBEEF7MINIV2 firmware target.
Bluetooth supports parameter configuration but does not support wireless flight-controller firmware flashing.
Flight-controller firmware updates and Blackbox downloads must be performed through a computer.
The RunCam camera shown in the wiring diagram is a connection example and is not identified as part of the stack package.
Check the FC and ESC orientation, motor order, power wiring and current-sensor settings before flight.

FAQ

Which gyro and firmware target does this stack use?

The board revision shown in the supplied material corresponds to the older MPU6000 batch and uses the SPEEDYBEEF7MINI target. Later BMI270 boards use SPEEDYBEEF7MINIV2, so the hardware must be checked before flashing firmware.

What does 8-bit mean in the product name?

It refers to the BLHeli_S ESC platform. The flight controller itself uses a 32-bit STM32F722 processor.

What battery voltage and ESC current does the stack support?

The stack supports 3–6S LiPo input. Its four-in-one ESC is rated at 35 A continuous per channel and 45 A per channel for five seconds.

Can the flight controller firmware be updated through Bluetooth?

No. Bluetooth can be used for supported flight-controller and ESC parameter configuration through the SpeedyBee app, but flight-controller firmware updates must be completed through a computer.

Is the RunCam camera included?

No camera is established as part of the stack package. The RunCam Phoenix 2 Nano shown in the supplied wiring diagram is an integration example.

Does the flight controller include a barometer?

No. The SpeedyBee F7 Mini specification does not include an onboard barometer.

B2B Procurement FAQ

Is this SpeedyBee F7 Mini stack still available?

The manufacturer currently identifies this model as discontinued. Remaining inventory, quantity and batch information must be confirmed during quotation.

How should the gyro revision be confirmed before ordering?

Request confirmation of the board marking, production revision, installed gyro and required Betaflight target. The MPU6000 and BMI270 versions use different firmware targets.

Can the flight controller or ESC be purchased separately?

The manufacturer previously listed stack, flight-controller-only and ESC-only options. The configuration currently available must be confirmed during quotation.

What accessories are supplied with the stack?

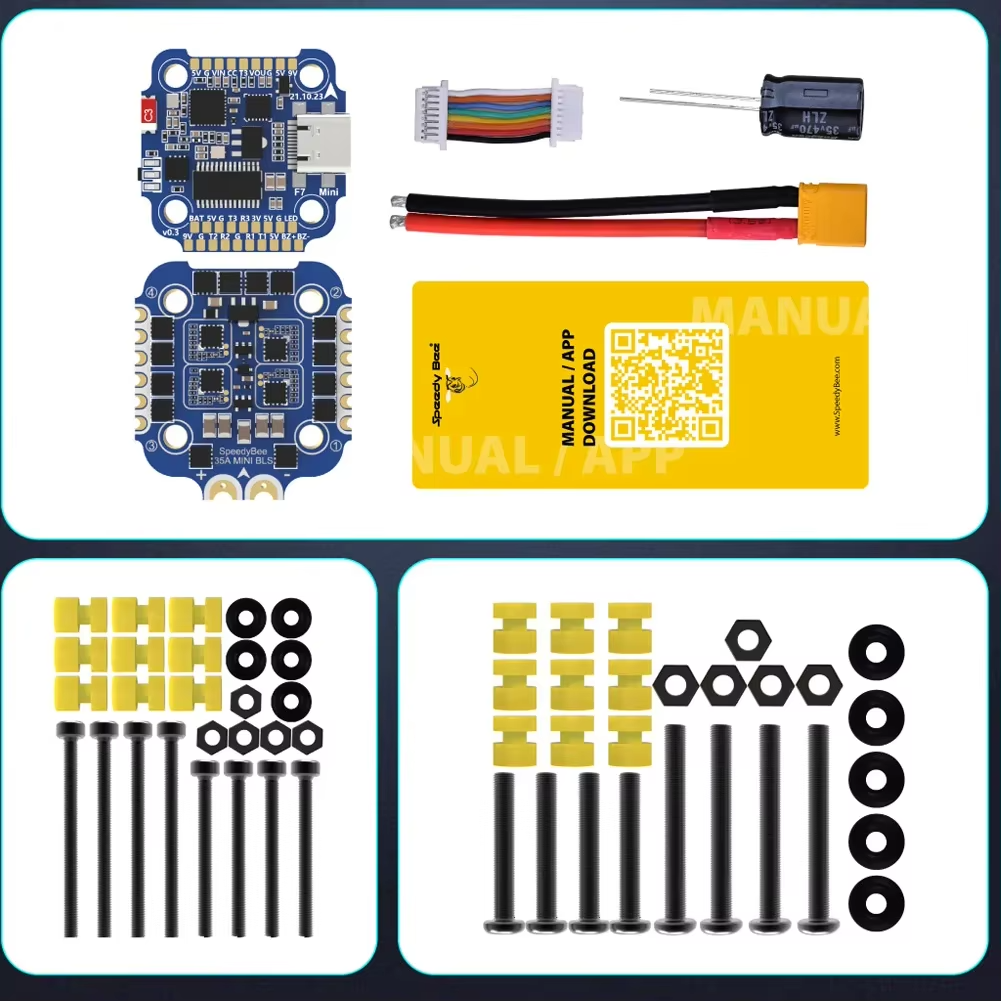

The attachment shows an FC-to-ESC cable, power lead, capacitor, mounting hardware, grommets and documentation card. The exact packing list for the available batch should be confirmed in the quotation.

What are the MOQ, lead time and warranty terms?

Minimum order quantity, available quantity, lead time, warranty coverage and delivery terms must be confirmed during quotation.
