RadioLink CrossFlight V1.0 Flight Controller

Short Description:

RadioLink CrossFlight V1.0 flight controller with 10 PWM outputs, integrated OSD, Type-C USB and a 2–12S power module for multirotor, plane and RC vehicle projects.

Product Name: RadioLink CrossFlight V1.0 Flight Controller
Product Type: Multi-Vehicle Autopilot Flight Controller
MCU: HC32F4A0PITB, 240 MHz, 512 KB RAM, 2 MB Flash
Gyroscope: BMI270
Barometer: LPS22HB
OSD Module: Integrated Analog Video OSD Module
Firmware: RadioLink CrossFlight Firmware, ArduPilot-Derived
Firmware Target: Crossflight
PWM Outputs: 10
Power Module Battery Input: 2–12S

Send email to us

Product Detail

FAQ

Technical Highlights

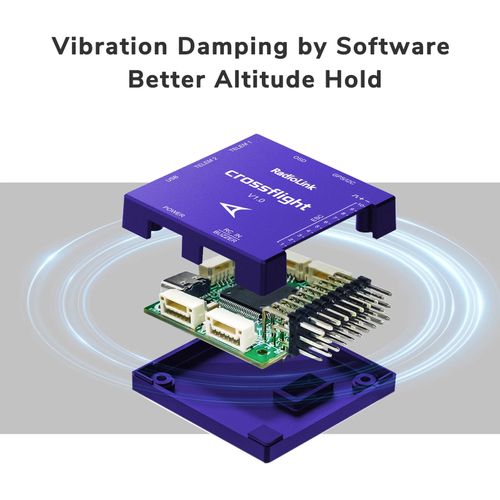

HC32-Based Autopilot Platform

The CrossFlight V1.0 uses an HC32F4A0PITB processor running at 240 MHz, with 512 KB RAM and 2 MB flash memory for vehicle-control firmware and parameter storage.

Integrated Navigation Sensors

The V1.0 specification set combines a BMI270 inertial sensor, VCM5883L compass and LPS22HB barometer for attitude, heading and altitude data.

Ten PWM Control Outputs

Ten PWM outputs provide connections for ESCs, motors or servos across multirotor, fixed-wing, helicopter and supported surface-vehicle configurations.

Integrated Analog Video OSD

An integrated OSD module provides an interface for an analog camera and video transmitter. The specific OSD chip is not identified in the verified CrossFlight V1.0 material.

Optional M8N or M10N GPS Kits

The supplied product images show controller-only, TS100 M8N and TS100 M10N purchasing options. The selected GPS version must be confirmed when ordering.

Controller Specifications

Model	CrossFlight V1.0
Processor	HC32F4A0PITB, 240 MHz
Memory	512 KB RAM; 2 MB Flash
Gyroscope and Accelerometer	BMI270
Compass	VCM5883L
Barometer	LPS22HB
OSD	Integrated analog video OSD module
PWM Outputs	10
Parameter Storage	Internal flash; no separate FRAM
Connector Type	JST GH 1.25
USB Interface	USB Type-C

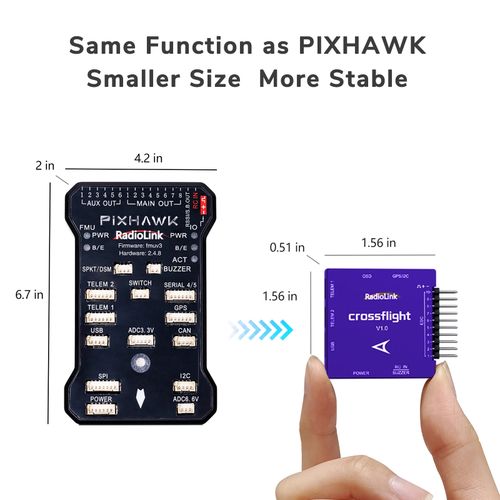

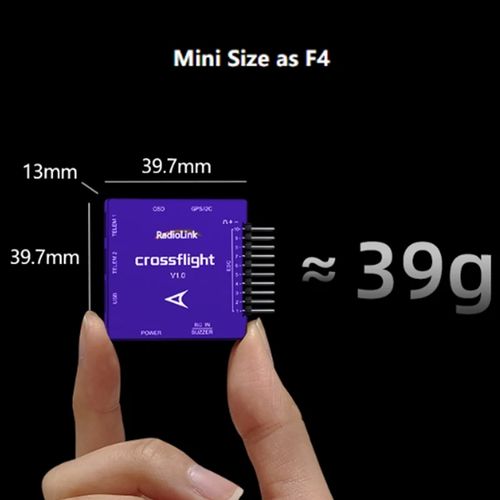

Dimensions	39.7 × 39.7 × 13 mm
Controller Weight	16.5 g without connecting wires

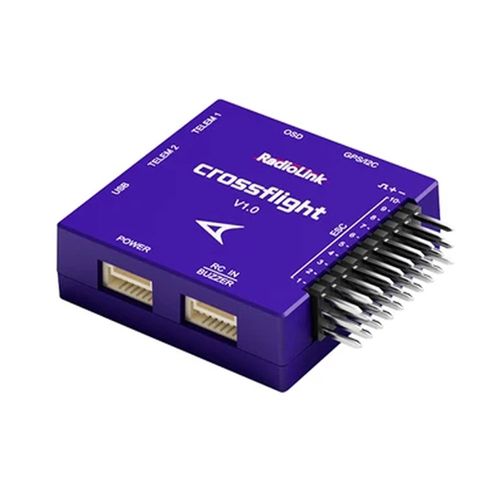

Interfaces and Control

Main Outputs	10 PWM outputs for ESC or servo connections
Telemetry	2 MAVLink UART ports without CTS/RTS hardware flow control
GPS Connection	1 combined GPS UART and I2C port
Receiver Input	PPM and SBUS for the verified V1.0 configuration
OSD Port	Analog camera and video-transmitter connection
ESC Protocol	PWM confirmed; DShot and OneShot depend on compatible firmware and supplied hardware revision
Configuration Interface	RadioLink Mission Planner; supported Mission Planner software may also be used for parameter setup according to the manufacturer instructions
Firmware Target	Crossflight

Power Module

Battery Input	2–12S through the corresponding CrossFlight power module
Maximum Detection Current	90 A
BEC Output Voltage	5.3 V ± 0.2 V
BEC Output Current	2 A
Single ESC Maximum Detection Current	22.5 A

Supported Applications

Multirotor aircraft
Fixed-wing aircraft
RC helicopters
RC cars and rovers
RC boats and other supported autonomous-vehicle projects

Selection and Installation Notes

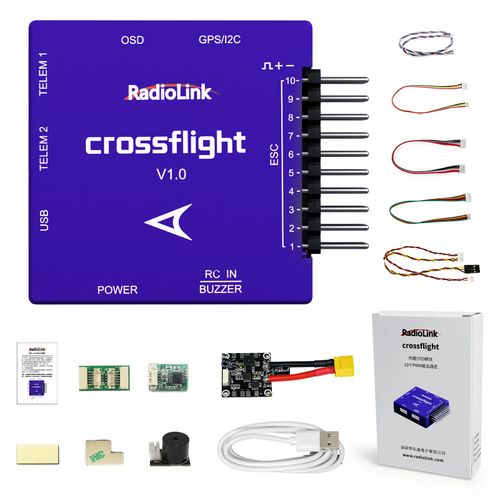

Choose the controller-only, TS100 M8N or TS100 M10N option according to the required SKU.
The 2–12S rating applies to the corresponding power module, not to a direct raw-battery connection to the flight controller.
Confirm the CrossFlight hardware revision, sensor configuration and installed firmware before configuration.
Back up existing parameters before changing firmware for a different vehicle type.
Verify DShot or OneShot availability with the actual firmware and Bootloader version before selecting an ESC protocol.

FAQ

Does every CrossFlight package include a GPS module?

No. The supplied material shows a controller-only option, a CrossFlight with TS100 M8N option and a CrossFlight with TS100 M10N option. Select the required GPS configuration when ordering.

Can a 2–12S battery be connected directly to the flight controller?

The 2–12S rating belongs to the corresponding power module. Install the power module according to the RadioLink wiring instructions instead of connecting raw battery voltage directly to the flight-controller power port.

Which gyro is used in this CrossFlight V1.0?

The specification set corresponding to the supplied V1.0 product identifies a BMI270 gyro and accelerometer. Do not substitute the ICM42670 specification from later V1.1 documentation without checking the actual revision.

Does the controller support DShot and OneShot?

PWM is the confirmed protocol in the supplied V1.0 material. Later RadioLink documentation lists DShot and OneShot after a suitable firmware update, so support must be verified against the supplied board, firmware and Bootloader version.

What software is used to configure CrossFlight?

RadioLink provides its Mission Planner for firmware installation and parameter configuration. Back up the existing parameters before changing firmware or switching to firmware for another vehicle type.

B2B Procurement FAQ

Which CrossFlight SKU should be stated on the quotation?

Specify controller-only, CrossFlight with TS100 M8N, or CrossFlight with TS100 M10N. The exact GPS model and included accessories should be confirmed in the quotation.

How should the hardware revision be verified?

Confirm the V1.0 marking, gyro model, power-module version, installed firmware and Bootloader information for the offered batch before placing an order.

Are all cables and accessories included?

The supplied images show cables, a power module, buzzer and related accessories, but the exact package contents can vary by SKU. A confirmed packing list should be included with the quotation.

What are the MOQ, lead time and warranty terms?

Minimum order quantity, production or dispatch lead time, warranty coverage and delivery terms must be confirmed during quotation.
