SpeedyBee F405 WING MINI Fixed-Wing Flight Controller

Short Description:

SpeedyBee F405 WING MINI fixed-wing flight controller with STM32F405, 11 motor/servo outputs, 2–6S PDB, INAV/ArduPilot support, and wireless USB extender.

Product Name: SpeedyBee F405 WING MINI Fixed-Wing Flight Controller
Product Type: Fixed-wing flight controller kit with PDB and wireless USB extender
MCU: STM32F405, 168 MHz, 1 MB flash
Gyroscope: ICM-42688-P
Barometer: SPL06-001
OSD Chip: AT7456E
Firmware: INAV (default); ArduPilot supported
Firmware Target: SPEEDYBEEF405WING (INAV); SpeedyBeeF405WING (ArduPilot)
Power Input: 7–26 V DC, 2–6S LiPo, via included PDB
Motor/Servo Outputs: S1–S11: 9 pin-header outputs and 2 solder-pad outputs; separate LED pad configurable as PWM12

Send email to us

Product Detail

FAQ

Technical Highlights

Compact Fixed-Wing Flight Control

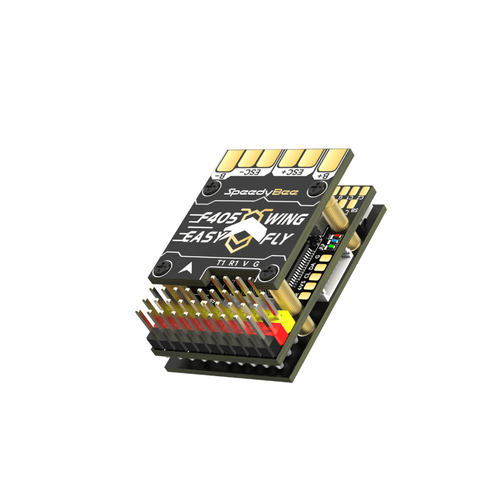

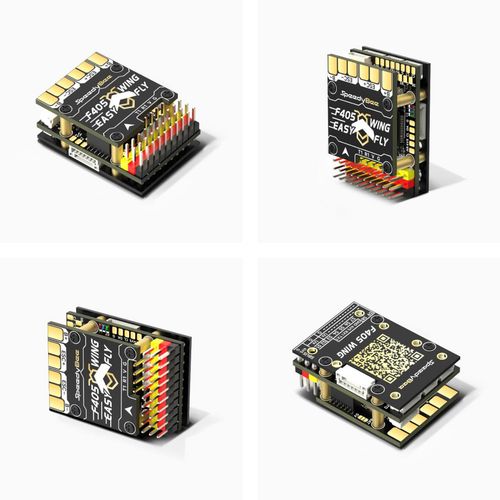

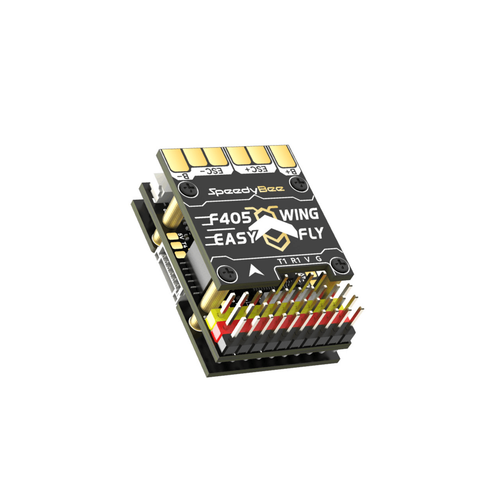

The F405 WING MINI combines an STM32F405 flight controller, ICM-42688-P inertial sensor, SPL06-001 barometer and AT7456E analog OSD chip. The assembled unit measures 37 × 26 × 14 mm.

11 Motor and Servo Outputs

Outputs S1–S9 are available on pin headers, while S10 and S11 use solder pads. A separate LED pad is listed as a twelfth configurable PWM resource; it is not an additional ready-to-use servo header.

Integrated Power Distribution

The included PDB accepts 7–26 V DC from a 2–6S LiPo battery. It provides a dedicated 5.2 V flight-controller BEC and a separate servo BEC set to 5 V by default, with a 6 V jumper option.

INAV, ArduPilot and Wireless Configuration

INAV is the default firmware, and ArduPilot is also supported. The included wireless USB extender supports Bluetooth BLE and Wi-Fi configuration modes. Firmware flashing itself requires a wired computer connection.

Flight Controller Specifications

MCU	STM32F405, 168 MHz, 1 MB flash
IMU	ICM-42688-P gyroscope and accelerometer
Barometer	SPL06-001
Analog OSD	AT7456E
Blackbox Storage	MicroSD card slot
UARTs	Six; UART6 is dedicated to the wireless extender telemetry connection
Motor/Servo Outputs	S1–S11: nine pin-header outputs plus two solder-pad outputs
Additional PWM Resource	LED pad, configurable as PWM12
Receiver Connections	ELRS/CRSF via UART1; inverted SBUS input via UART2-RX
Firmware	INAV (default) or ArduPilot
Firmware Target	SPEEDYBEEF405WING for INAV; SpeedyBeeF405WING for ArduPilot

Power and Physical Specifications

PDB Input	7–26 V DC, 2–6S LiPo
FC BEC	5.2 V ±0.1 V; 2 A continuous, 3 A peak
Servo BEC	5 V ±0.1 V by default; 4 A continuous, 5 A peak; 6 V selectable by jumper
Battery Current Sensor	80 A continuous, 150 A peak measurement specification
VTX/Camera Power	Battery voltage by default; jumper-selectable supply from the servo BEC
Assembled Dimensions	37 × 26 × 14 mm
Assembled Weight	19 g, including wireless USB extender

Installation Notes

Check the camera and VTX voltage ratings before connecting them: their Vv supply defaults to battery voltage.
If Vv is changed to the servo-BEC supply, account for the combined servo and video-equipment current. Selecting the 6 V servo-BEC option also changes that shared supply voltage.

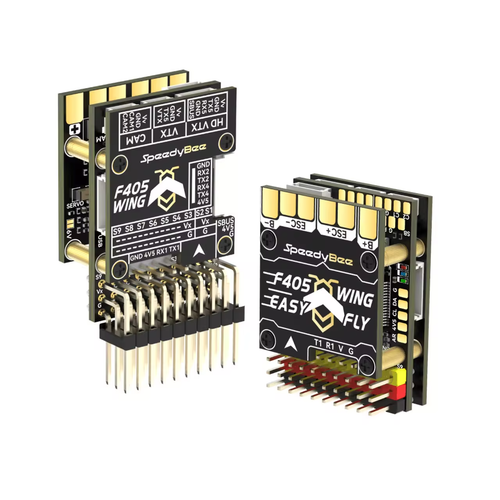

Use the appropriate included shield board for standard or inverted flight-controller installation, and set the firmware board orientation accordingly.
Flash firmware through a wired computer connection; the wireless extender does not support wireless firmware flashing.

Package Contents

F405 WING MINI PDB board ×1 and FC board ×1

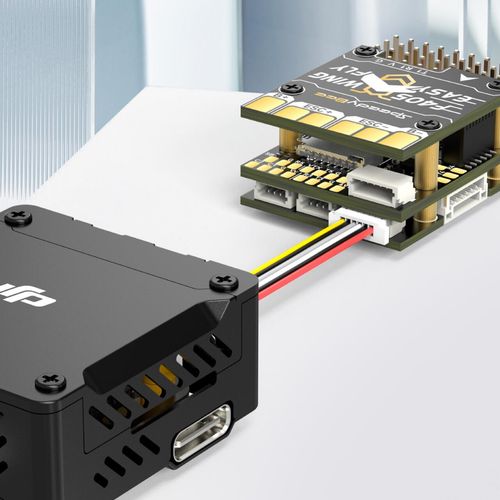

F405 WING MINI wireless USB extender ×1
Custom-install shield board ×1 and standard-install shield board ×1
90-degree 3×10 pin header ×1; straight 1×10 pin headers ×3; white straight 1×4 pin header ×1
M2×6.5 copper standoffs ×5; M2×3+3 copper standoffs ×5; M2×3.5 screws ×10
35 V 470 µF low-ESR capacitor ×1
Wireless USB extender, analog VTX, GPS module, digital VTX, FPV camera and 4-pin Dupont cables ×1 each, as shown in the supplied package image

FAQ

Does the F405 WING MINI have 11 or 12 PWM outputs?

It provides S1–S11 motor/servo outputs: nine pin-header outputs and two solder-pad outputs. The manual also counts the separate LED pad as a twelfth configurable PWM resource.

Which firmware target should I select?

Select SPEEDYBEEF405WING when flashing INAV. The manufacturer's manual lists SpeedyBeeF405WING for ArduPilot. Do not select a similarly named F405 Mini quadcopter target.

Can I flash firmware over Bluetooth or Wi-Fi?

No. The wireless extender is for configuration and telemetry connections; firmware flashing requires a wired computer connection.

What voltage is supplied to the camera and VTX connectors?

The Vv supply defaults to battery voltage. A jumper can select power from the servo BEC instead. Check the camera and VTX ratings and the shared BEC load before changing the jumper.

Are the GPS, camera, VTX, receiver and ESC included?

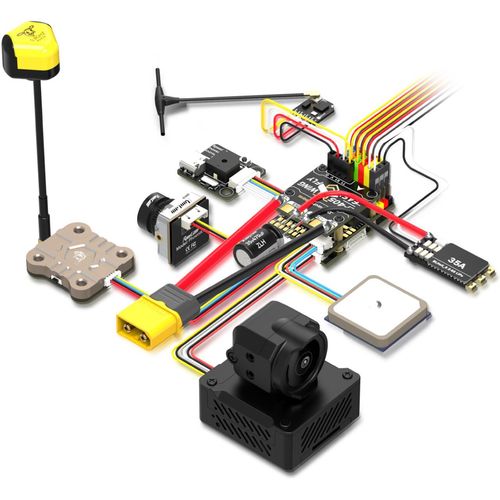

No. Those devices appear in connection illustrations, but they are not listed in the supplied package-contents image.
