Matek F405-WMO Fixed-Wing Flight Controller

Short Description:

Matek F405-WMO fixed-wing flight controller with STM32F405, ICM42688-P, SPL06-001 barometer and SD-card blackbox logging. 5.4–30 V input; 9 g.

Product Name: Matek F405-WMO Fixed-Wing Flight Controller
Product Type: Fixed-wing flight controller
MCU: STM32F405RGT6, 168 MHz
Gyroscope: ICM42688-P
Barometer: SPL06-001
OSD Chip: AT7456E
Firmware: INAV; ArduPilot
Firmware Target: MATEKF405TE_SD (INAV); MatekF405-TE (ArduPilot)
Blackbox Storage: SD card slot
Input Voltage: 5.4–30 V DC (2–6S LiPo)

Send email to us

Product Detail

FAQ

Technical Highlights

Compact Fixed-Wing Control

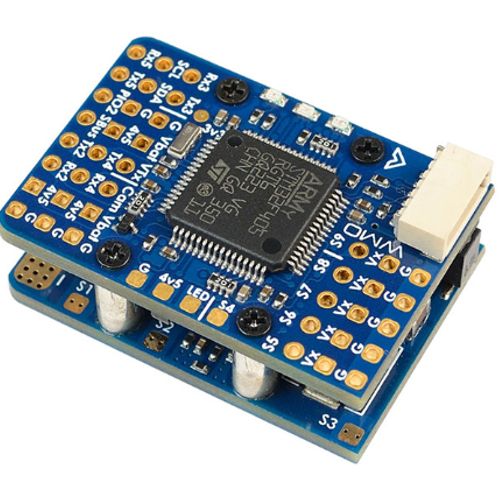

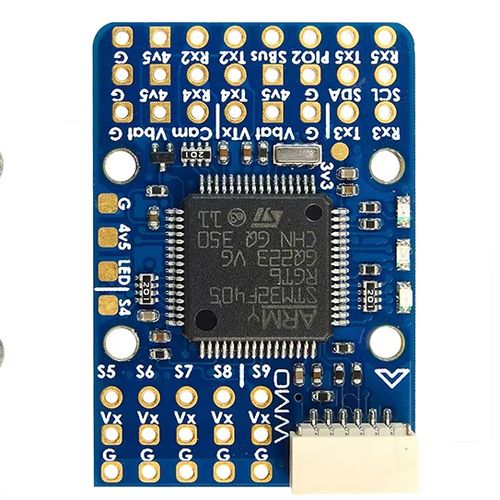

The F405-WMO uses an STM32F405RGT6 MCU and an ICM42688-P IMU in a 32 × 22 × 12.7 mm assembly. Matek specifies a weight of 9 g.

Onboard Sensors and SD Logging

An SPL06-001 barometer and AT7456E OSD chip are integrated on the board. A dedicated SD card slot provides storage for flight logs.

Power Outputs for Airframe Integration

The board accepts 5.4–30 V DC input. It provides a 5 V output rated at 2 A and a servo Vx output rated at 4.5 A continuous, with a stated 7 A peak. Vx is 5 V by default, with a 6 V option.

Fixed-Wing Interfaces

Matek documents four UARTs, one I2C bus, nine S1–S9 outputs and an LED PWM output. Filtered battery-voltage output for an external camera or video transmitter can be switched on or off.

Technical Specifications

Model	F405-WMO
MCU	STM32F405RGT6, 168 MHz, 1 MB flash
Gyroscope	ICM42688-P
Barometer	SPL06-001
OSD Chip	AT7456E
Blackbox Storage	SD card slot
Serial Interfaces	4 UARTs
I2C	1 bus
Outputs	S1–S9 plus LED PWM output
Input Voltage	5.4–30 V DC (2–6S LiPo)
5 V Output	2 A
Servo Vx Output	5 V default or 6 V option; 4.5 A continuous, 7 A peak

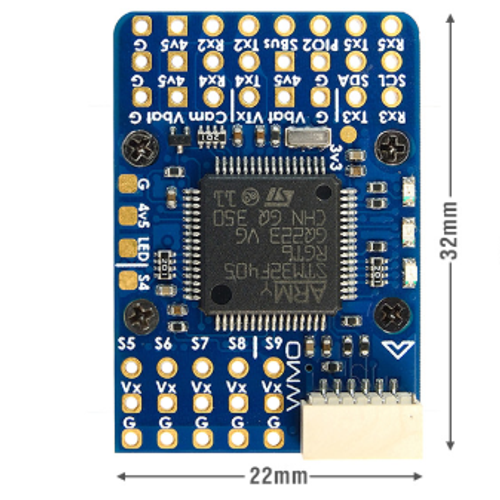

Dimensions	32 × 22 × 12.7 mm
Weight	9 g

Firmware and Current-Sensor Selection

Use the manufacturer-listed MATEKF405TE_SD target for INAV or MatekF405-TE for ArduPilot. Do not assume that a target for another Matek F405 model applies to the F405-WMO.
For ArduPilot SD-card logging, Matek specifies LOG_BACKEND_TYPE = 1 (File).
Check the current-sense resistor marking on the delivered PDB. Matek reports that a PDB marked “3m0” has a 13.2 A sensor range rather than the 132 A range in the main specification.
Confirm the Vx voltage setting and the power requirements of connected servos before applying power.
Remove propellers before configuration or output testing.

FAQ

Which firmware targets are listed for the F405-WMO?

Matek lists MATEKF405TE_SD for INAV and MatekF405-TE for ArduPilot.

Does the F405-WMO use onboard flash for blackbox logging?

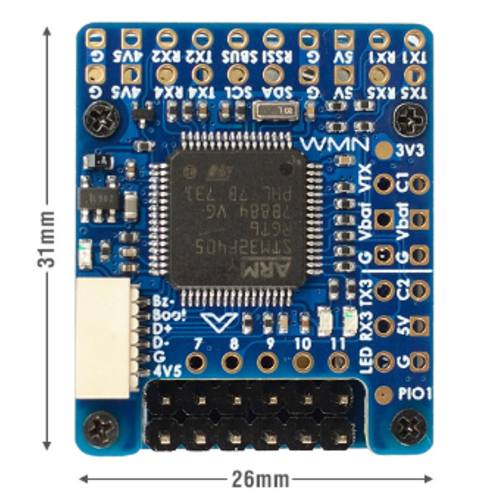

No. The F405-WMO has an SD card slot. The 16M-flash specification shown for the F405-WMN comparison model does not apply to the F405-WMO.

What is the servo Vx output?

Vx is 5 V by default and has a 6 V option. Matek rates it at 4.5 A continuous and 7 A peak.

Why must the PDB current-sense resistor be checked?

Matek reports that some PDBs were fitted with a “3m0” resistor. Those units have a 13.2 A current-sensor range instead of the 132 A range stated for the corrected version.
