Matek F405-WMO Flight Controller

Short Description:

Matek F405-WMO flight controller for fixed-wing aircraft, featuring an STM32F405 MCU, ICM42688-P gyro, SPL06-001 barometer, SD blackbox and 2–6S input.

Product Name: Matek F405-WMO Flight Controller
Product Type: Fixed-Wing / VTOL Flight Controller
MCU: STM32F405RGT6, 168 MHz, 1 MB Flash
Gyroscope: ICM42688-P
Barometer: SPL06-001
OSD Chip: AT7456E
Firmware: ArduPilot and INAV
Firmware Target: MatekF405-TE (ArduPilot); MATEKF405TE_SD (INAV)
Input Voltage: 5.4–30 V DC (2–6S LiPo)
Dimensions: 32 × 22 × 12.7 mm

Send email to us

Product Detail

FAQ

Technical Highlights

Compact Fixed-Wing Controller

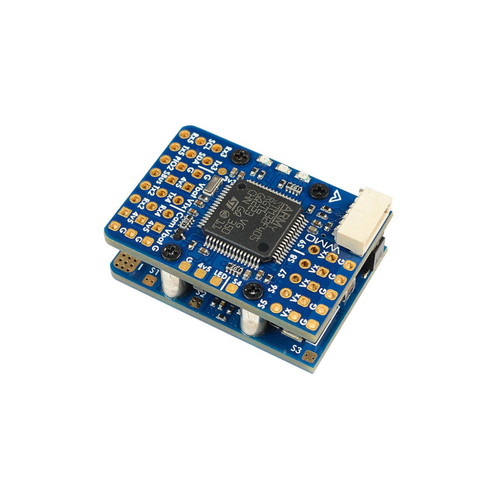

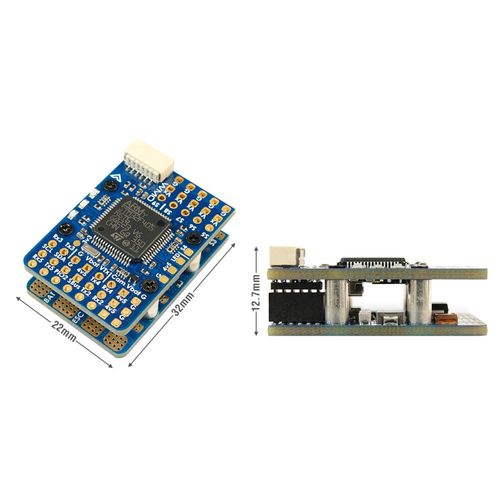

The F405-WMO measures 32 × 22 × 12.7 mm and weighs 9 g. It combines an STM32F405RGT6 MCU with an ICM42688-P gyroscope and SPL06-001 barometer.

Onboard OSD and SD Logging

An AT7456E OSD chip supports video overlay, while an SD card slot provides storage for flight logging. An SD card is not specified as included.

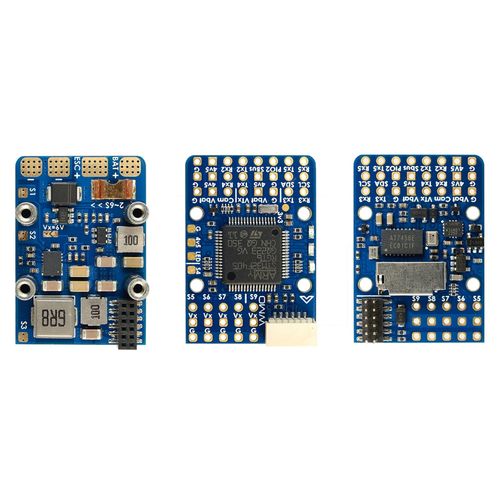

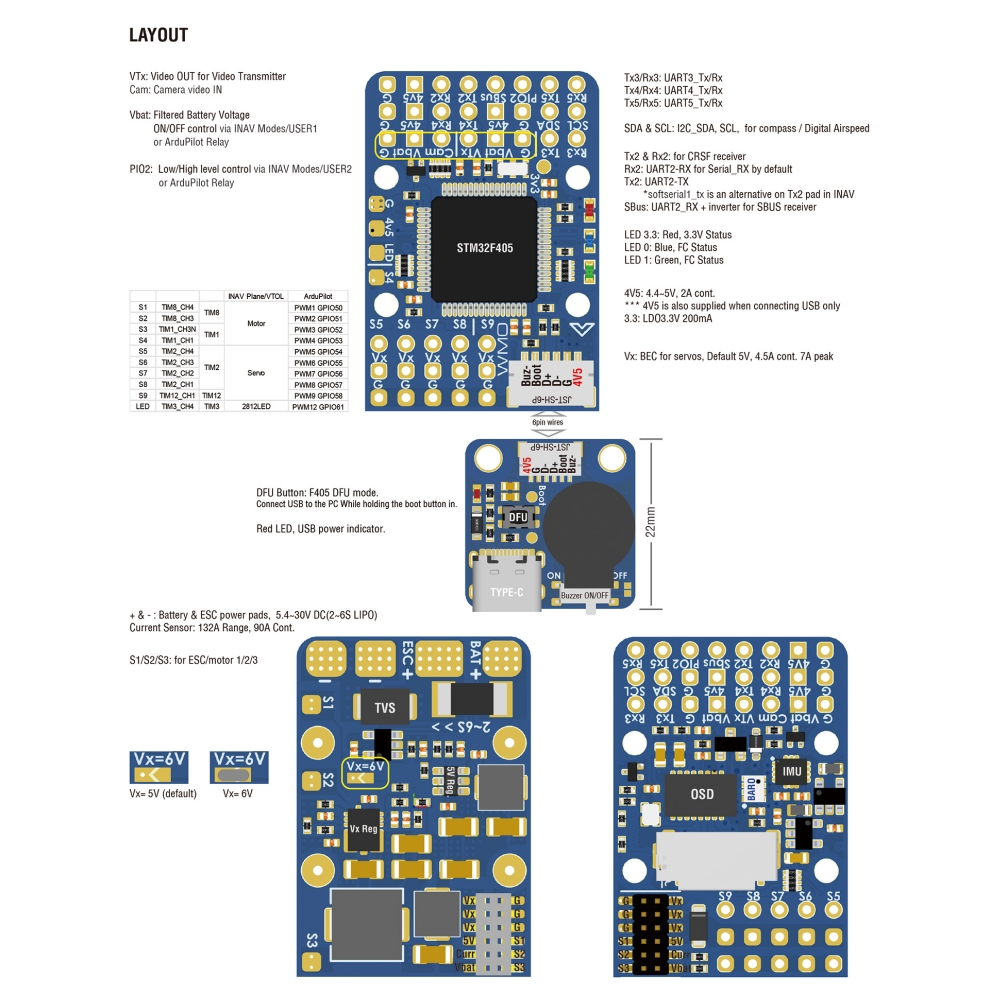

Aircraft and Peripheral Connections

The board provides four UARTs, one I2C bus, two ADC inputs and 10 PWM-capable outputs. The output count comprises S1–S9 plus the LED pad.

2–6S Power System

The specified input is 5.4–30 V DC. Integrated outputs include a 5 V/4V5 rail rated at 2 A and a selectable 5 V or 6 V Vx rail rated at 4.5 A continuous and 7 A peak.

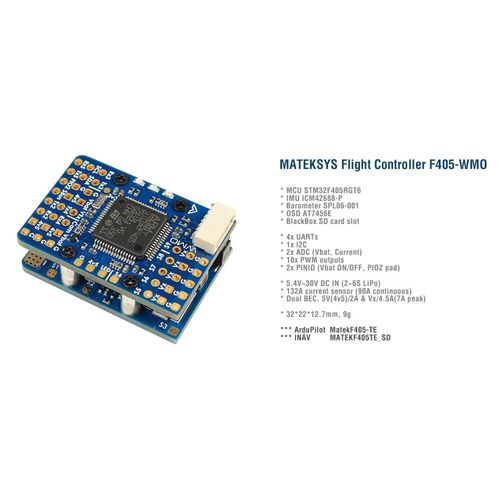

Flight Controller Specifications

Model	Matek F405-WMO
MCU	STM32F405RGT6, 168 MHz, 1 MB Flash
Gyroscope	ICM42688-P
Barometer	SPL06-001
OSD Chip	AT7456E
Blackbox Storage	SD card slot
UARTs	4
I2C	1 bus
ADC Inputs	2: battery voltage and current
PWM Outputs	10, counting S1–S9 and the LED pad
USB	Type-C through the USB/beeper extender
Firmware Targets	MatekF405-TE for ArduPilot; MATEKF405TE_SD for INAV

Power and Physical Specifications

Battery Input	5.4–30 V DC (2–6S LiPo)
5 V / 4V5 BEC	2 A for the flight controller and peripherals
Vx BEC	5 V default or 6 V selectable; 4.5 A continuous, 7 A peak
3.3 V Output	200 mA
Filtered Battery Output	Filtered Vbat output for video equipment, with ON/OFF control
Dimensions	32 × 22 × 12.7 mm
Weight	9 g

Current-Sensing and Integration Notes

Matek specifies a 132 A current-sensor range and a 90 A continuous / 132 A burst PDB rating for the standard configuration.
Matek has identified an affected PDB variant with a shunt marked “3m0”. Its current-sensor range is 13.2 A, and the manufacturer limits its use to low-current aircraft below 15 A. Inspect the actual PDB before applying current calibration or relying on the standard current rating.

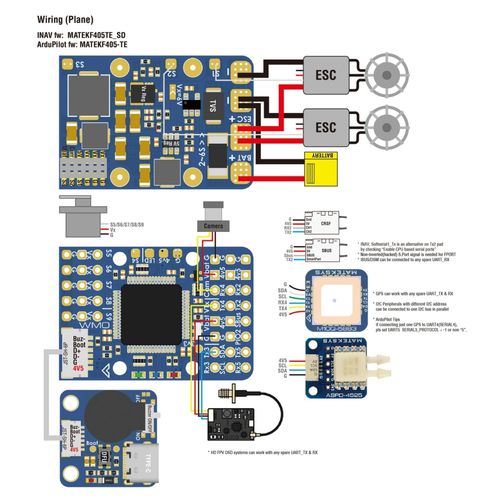

Select the MatekF405-TE target for ArduPilot or MATEKF405TE_SD for INAV. Confirm firmware and wiring against the installed board.
Check the voltage and current requirements of each peripheral before connecting it to the 4V5, Vx or filtered Vbat output.

FAQ

What battery input does the F405-WMO support?

Its specified input range is 5.4–30 V DC, corresponding to 2–6S LiPo systems.

Does “10 PWM outputs” include the LED pad?

Yes. The count includes nine S1–S9 outputs and the LED pad.

Which firmware targets should be selected?

Select MatekF405-TE for ArduPilot or MATEKF405TE_SD for INAV.

Why must the PDB shunt marking be checked?

Matek reports that a PDB marked “3m0” has a 13.2 A current-sensor range instead of the standard 132 A range. The manufacturer specifies this affected PDB for low-current aircraft below 15 A.

B2B Procurement FAQ

What should a buyer request before ordering?

Request confirmation of the F405-WMO model, actual PDB shunt marking, required quantity and supplied accessory set during quotation.

Can the standard 132 A current-sensor specification be guaranteed for every unit?

No specification should be assigned to an uninspected batch. Confirm the PDB version and current-sensor range of the actual supplied units during quotation.

What are the MOQ, lead time and delivery terms?

MOQ, lead time and delivery terms are not established by the supplied product evidence and must be confirmed during quotation.
