JHEMCU GHF722AIO-HD 40A AIO Flight Controller

Short Description:

JHEMCU GHF722AIO-HD F722 AIO flight controller with ICM-42688-P gyro, barometer, AT7456E OSD, 40A 4-in-1 ESC and 2–6S LiPo input.

Product Name: JHEMCU GHF722AIO-HD 40A AIO Flight Controller
Product Type: AIO FPV flight controller with integrated 4-in-1 ESC
MCU: STM32F722RET6
Gyroscope: ICM-42688-P
Barometer: Onboard barometer
OSD Chip: AT7456E
Firmware: Betaflight
Firmware Target: JHEF7DUAL
Input Voltage: 2–6S LiPo
Integrated ESC: 4-in-1, 40 A × 4 listed rating

Send email to us

Product Detail

FAQ

Technical Highlights

Flight Controller and ESC on One Board

The GHF722AIO-HD integrates an F722 flight controller and a four-channel ESC. The ESC is advertised at 40 A per channel; the supplied material does not state the current test duration or a separate burst rating.

ICM-42688-P Gyroscope and Onboard Barometer

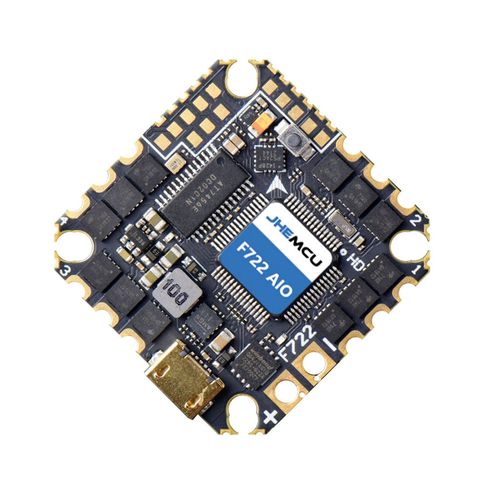

The board identifies an STM32F722RET6 MCU and ICM-42688-P gyroscope. An onboard barometer is shown in the component diagram, without a specified barometer chip model.

Analog OSD and Blackbox Hardware

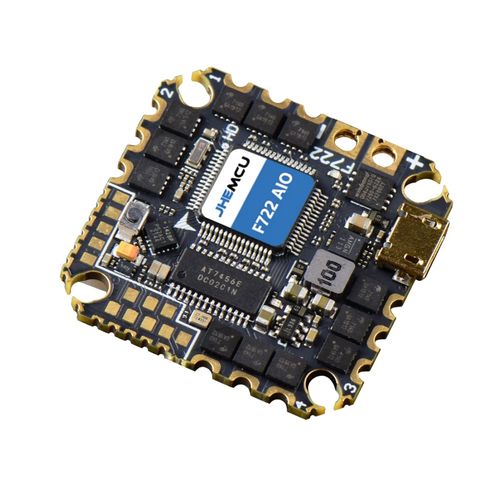

An AT7456E OSD chip and onboard blackbox hardware are identified in the supplied board illustration. The attachment does not establish a blackbox memory capacity.

2–6S Input and HD Video-System Wiring

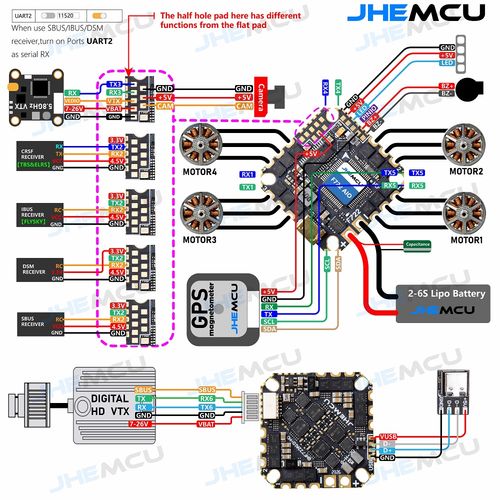

The wiring diagram specifies a 2–6S LiPo battery and shows a dedicated HD video-system connection along with camera, external receiver and peripheral pads.

Flight Controller and ESC Specifications

Model	GHF722AIO-HD
Product Configuration	F722 flight controller with integrated 4-in-1 ESC
MCU	STM32F722RET6
Gyroscope	ICM-42688-P
Barometer	Onboard barometer
OSD Chip	AT7456E
Blackbox	Onboard blackbox hardware
ESC Rating	40 A × 4, as listed in the supplied product title
Flight Controller Firmware	Betaflight; JHEF7DUAL target

Power and Connections

Battery Input	2–6S LiPo
Regulated Output	5 V output shown on the wiring diagram
Motor Outputs	Four integrated ESC channels, labelled Motor 1–4

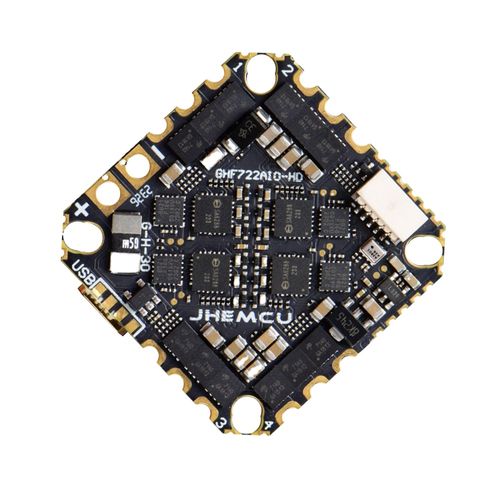

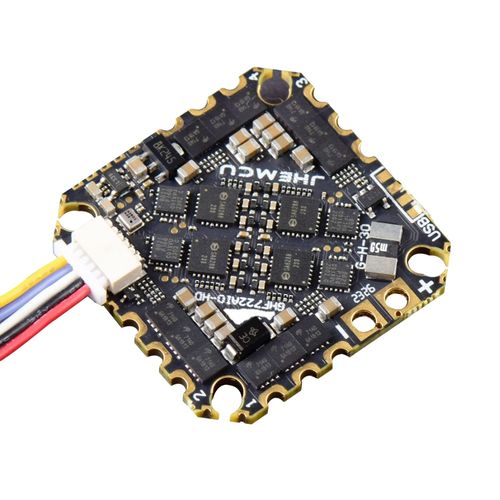

Video Connections	Analog camera and VTX pads; HD video-system connector shown in the supplied wiring diagram
Receiver Connections	Wiring examples for external CRSF, IBUS, DSM and SBUS receivers
Other Connections	GPS/I2C, LED and buzzer connections shown in the supplied wiring diagram
USB	Micro USB connector and USB extension pads

Installation Notes

Check the board marking for GHF722AIO-HD before selecting firmware; GHF722AIO-ICM is a separate model.
The receiver, GPS, camera, VTX, motors and battery in the wiring diagram are connection examples, not confirmed package contents.
Confirm the installed ESC firmware on the actual board before changing ESC settings or flashing a manufacturer-provided firmware file.
Observe battery polarity and verify the power requirements of each connected peripheral before wiring.

FAQ

Does the GHF722AIO-HD include an ESC?

Yes. The photographed board integrates a four-channel ESC. Its supplied listing states a 40 A rating for each channel but does not provide separate continuous and burst test conditions.

Is a radio receiver built into this AIO board?

The supplied wiring diagram shows external receiver connections. It does not identify an onboard radio receiver.

Which battery range is shown for this board?

The supplied wiring diagram labels a 2–6S LiPo battery input.

Which Betaflight target is identified for the GHF722AIO-HD?

The manufacturer configuration identifies JHEF7DUAL. Check the physical board model and the appropriate configuration before flashing.

B2B Procurement FAQ

What information should be supplied for a quotation?

Specify the GHF722AIO-HD model, required quantity, board revision and any requested firmware or accessory configuration so the quotation can identify the intended product.

Are the pictured cables and accessories included?

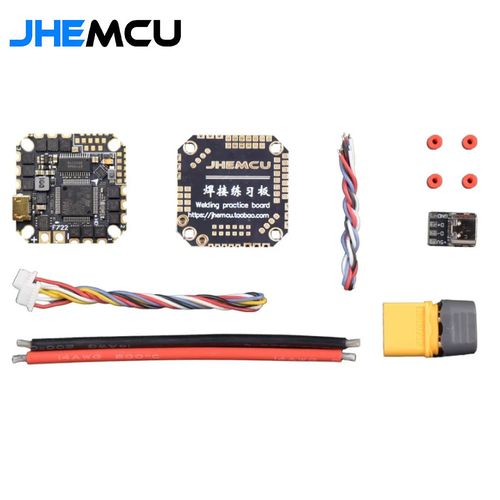

The photographs depict the board alongside accessories, but the attachment does not establish a definitive shipment list. Confirm exact package contents during quotation.

Are MOQ, lead time, warranty and certificates confirmed?

These terms are not established by the supplied material and must be confirmed during quotation.
