JHEMCU GF30F722-ICM F722 Flight Controller

Short Description:

JHEMCU GF30F722-ICM F7 flight controller with STM32F722RET6, ICM-42688-P gyro, barometer, AT7456E OSD, 16 MB blackbox, 3–8S LiPo input, and 5V/10V BEC outputs.

Product Name: JHEMCU GF30F722-ICM F722 Flight Controller
Product Type: Standalone FPV flight controller
MCU: STM32F722RET6
Gyroscope: ICM-42688-P
Barometer: Onboard barometer
OSD Chip: AT7456E
Firmware: Betaflight
Firmware Target: JHEF7DUAL
Input Voltage: 3–8S LiPo (11.4–36 V as listed)
BEC Outputs: 5 V / 2.5 A; 10 V / 2 A (USER1-controlled)

Send email to us

Product Detail

FAQ

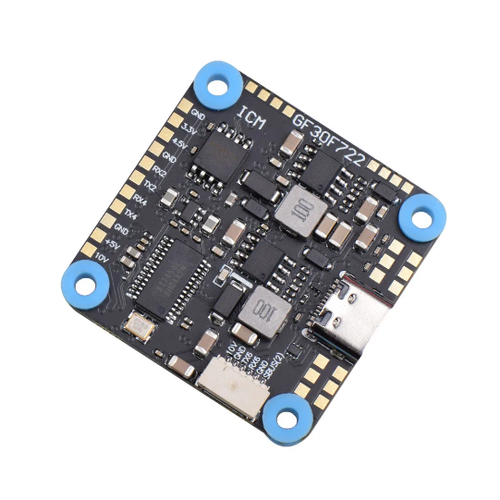

Technical Highlights

F722 Processing and ICM-42688-P Gyroscope

The GF30F722-ICM combines an STM32F722RET6 MCU with an ICM-42688-P gyro and accelerometer for an FPV flight-control build.

Barometer, OSD and Blackbox Logging

An onboard barometer, AT7456E analog OSD chip and 16 MB blackbox memory provide flight data and video-overlay functions. The supplied specification does not identify the barometer chip model.

3–8S Input with Dual BEC Outputs

The listed input is 3–8S LiPo. Regulated outputs are rated at 5 V / 2.5 A and 10 V / 2 A; the 10 V output is controlled through USER1.

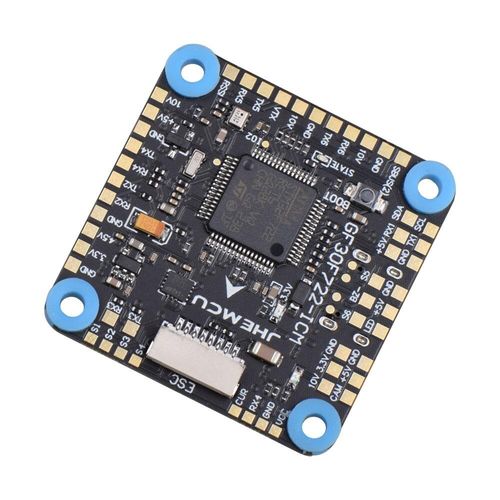

30.5 mm Mounting and Peripheral Connections

The board provides a 30.5 × 30.5 mm mounting pattern, six UARTs, I2C1, an ESC connector and pads for external receiver and video-system wiring.

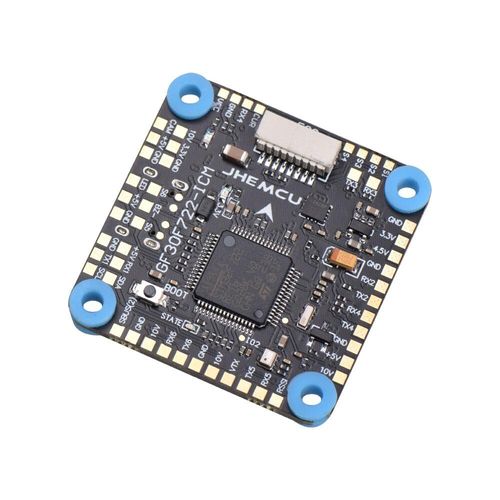

Flight Controller Specifications

Model	GF30F722-ICM
MCU	STM32F722RET6
Gyroscope / Accelerometer	ICM-42688-P
Barometer	Onboard barometer
OSD Chip	AT7456E
Blackbox Memory	16 MB
Firmware	Betaflight; JHEF7DUAL target

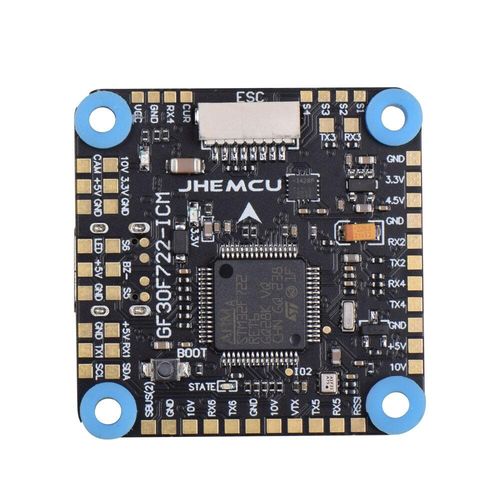

Electrical and Interfaces

Input Voltage	3–8S LiPo (11.4–36 V as listed)
5 V BEC	5 V / 2.5 A
10 V BEC	10 V / 2 A; USER1-controlled output
Serial Ports	UART1, UART2, UART3, UART4, UART5 and UART6
I2C	I2C1
USB	USB Type-C
Additional Connections	ESC connector, HD video-system interface, LED strip and 5 V active-buzzer support
Receiver Wiring Options	External CRSF, SBUS, IBUS, DSM2 or DSMX receiver connections as shown in the supplied wiring material

Physical Specifications

Board Size	36 × 36 mm
Mounting Pattern	30.5 × 30.5 mm; 4 mm mounting holes
Weight	8.8 g

Installation Notes

The 30.5 × 30.5 mm measurement is the mounting-hole spacing, not the overall board size.
External ESCs, receivers, cameras and video transmitters shown in the wiring diagram are connection examples.
Confirm the board revision and JHEF7DUAL configuration before changing firmware.

FAQ

Is the GF30F722-ICM a flight controller or an FC-and-ESC stack?

This listing describes the standalone GF30F722-ICM flight controller. The ESC in the supplied wiring diagram illustrates an external connection.

What is the difference between the 36 × 36 mm size and 30.5 × 30.5 mm measurement?

36 × 36 mm is the board size. 30.5 × 30.5 mm is the mounting-hole spacing.

Does the flight controller include a receiver?

No onboard receiver is identified in the supplied product material. The wiring diagram shows connections for external receiver types, including CRSF, SBUS, IBUS, DSM2 and DSMX.

Which Betaflight target is identified for this board?

JHEF7DUAL is identified for the GF30F722-ICM. Verify the physical board revision and the appropriate manufacturer configuration before flashing firmware.

B2B Procurement FAQ

What should be confirmed when requesting a quotation?

Specify the GF30F722-ICM model, required quantity, board revision and any firmware or accessory requirements so the quotation can be matched to the requested configuration.

Are cables, mounting hardware or an ESC included?

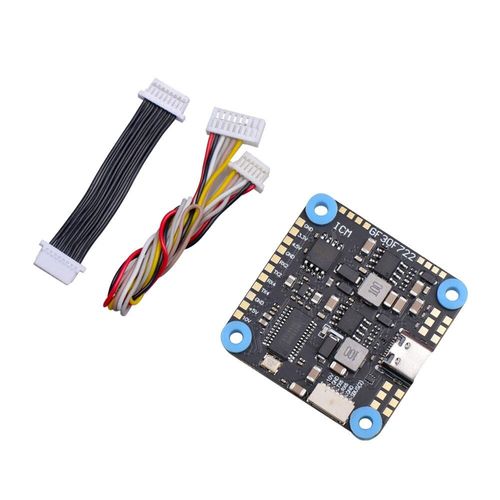

The supplied images show the board and cables, but they do not establish a complete shipment list. Confirm the exact package contents during quotation; the illustrated external ESC should not be assumed to be included.

What are the MOQ, lead time and warranty terms?

These terms are not established by the supplied product material and must be confirmed during quotation.
