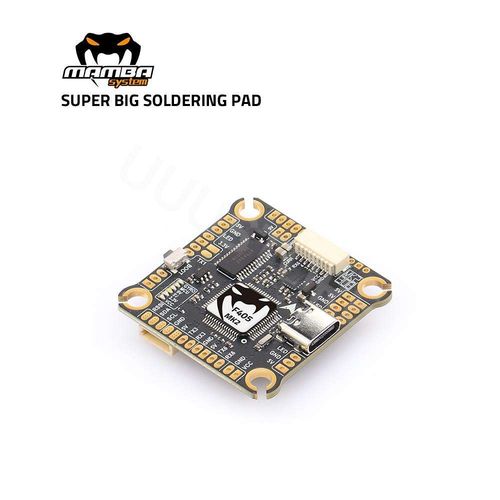

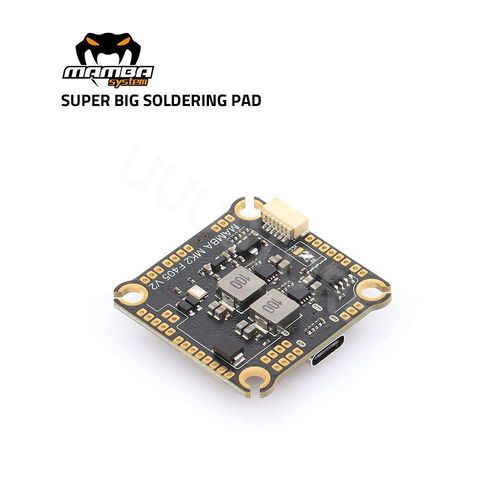

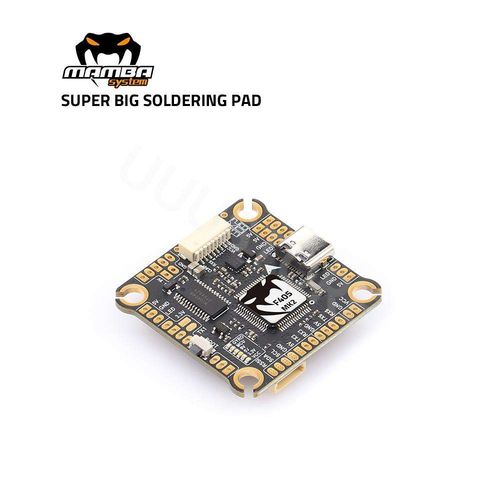

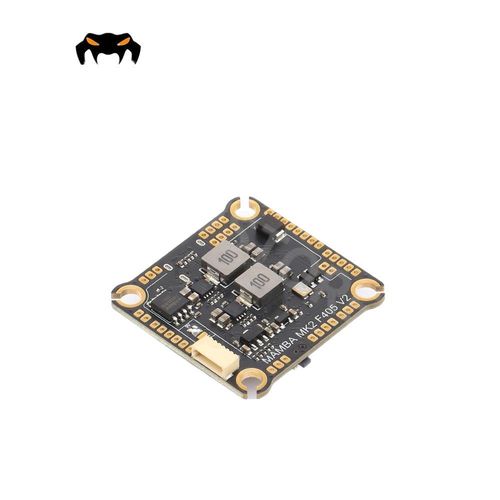

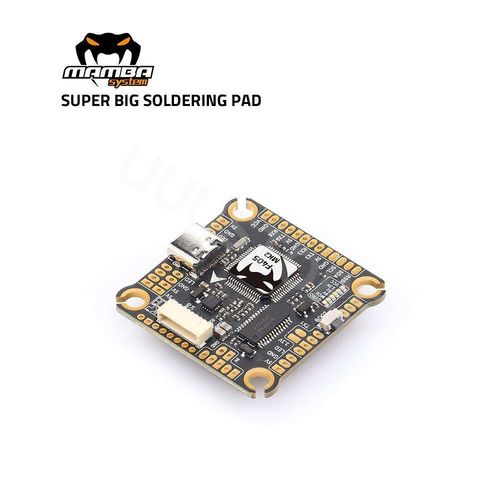

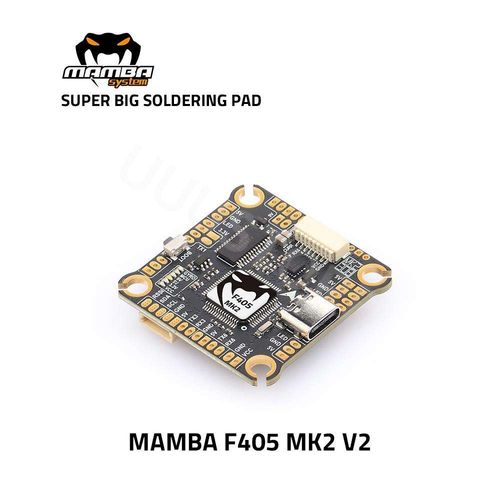

Diatone MAMBA F405 MK2 V2 Flight Controller

Short Description:

Diatone MAMBA F405 MK2 V2 FPV flight controller with STM32F405, AT7456E OSD, 16M blackbox flash and 30.5 mm mounting. Confirm the gyro variant before ordering.


  • Product Name: Diatone MAMBA F405 MK2 V2 Flight Controller
  • Product Type: FPV flight controller
  • MCU: STM32F405, 168 MHz
  • Gyroscope: MPU6000 or ICM42688P, depending on variant
  • Barometer: No onboard barometer
  • OSD Chip: AT7456E
  • Firmware: Betaflight
  • Firmware Target: FURYF4OSD legacy reference; verify on the actual board before flashing
  • Mounting Pattern: 30.5 × 30.5 mm, M3
  • Blackbox Memory: 16M onboard flash, per manufacturer notation

Product Detail

FAQ

Technical Highlights

STM32F405 Flight Control

The MAMBA F405 MK2 V2 uses a 168 MHz STM32F405 MCU and is designed for Betaflight-based FPV builds.

Two Gyroscope Variants

DIATONE offers MPU6000 and ICM42688P versions. Confirm the gyroscope fitted to the supplied unit before ordering or selecting firmware.

OSD and Flight Logging

An AT7456E OSD chip supports on-screen flight data, while the manufacturer lists 16M onboard flash for blackbox logging.

30.5 mm Mounting and Peripheral Connections

The board uses a 30.5 × 30.5 mm M3 mounting pattern. Its documented connections include UART, I2C, buzzer, LED, ESC signal and external video-transmitter wiring.

Technical Specifications

ModelMAMBA F405 MK2 V2
MCUSTM32F405, 168 MHz
GyroscopeMPU6000 or ICM42688P, depending on variant
BarometerNo onboard barometer
OSD ChipAT7456E
Blackbox Flash16M, per manufacturer notation
UARTs3 documented sets
ESC Signal Connections4 documented sets
Mounting Pattern30.5 × 30.5 mm, M3
FirmwareBetaflight

Integration Notes

  • The VTX connection is for wiring an external video transmitter; a VTX is not integrated into this flight controller.

  • Confirm the gyroscope variant and the target reported by the actual board before flashing firmware.

  • Use the wiring diagram matching the delivered board revision when connecting power, ESCs and peripherals.

  • Remove propellers before configuration or motor testing.

FAQ

Which gyroscope does the MAMBA F405 MK2 V2 use?

DIATONE lists MPU6000 and ICM42688P variants. The exact gyroscope must be confirmed for the supplied unit.

Does this flight controller include a video transmitter?

No integrated VTX is established by the supplied images or product documentation. The board provides connections for an external video transmitter.

Does the board have an onboard barometer?

No. This flight controller does not have an onboard barometer.

What should be checked before flashing Betaflight?

Check the gyroscope variant, board revision and firmware target reported by the actual unit. Do not select a target solely from a product title or a diagram for another revision.

B2B Procurement FAQ

How should the gyroscope variant be specified on a purchase inquiry?

State whether the required version is MPU6000 or ICM42688P and request confirmation of the exact supplied board revision.

Are an ESC and VTX included with this flight controller?

The supplied archive shows the flight-controller board only. Any ESC, VTX, cables or other package items must be confirmed in the quotation.

What are the MOQ and lead time?

MOQ, availability and lead time must be confirmed during quotation for the selected gyroscope variant and order quantity.
