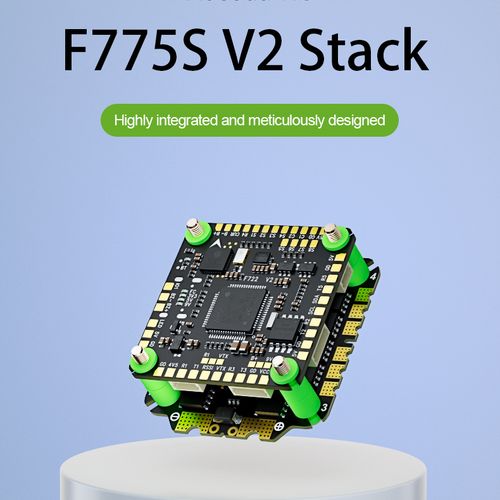

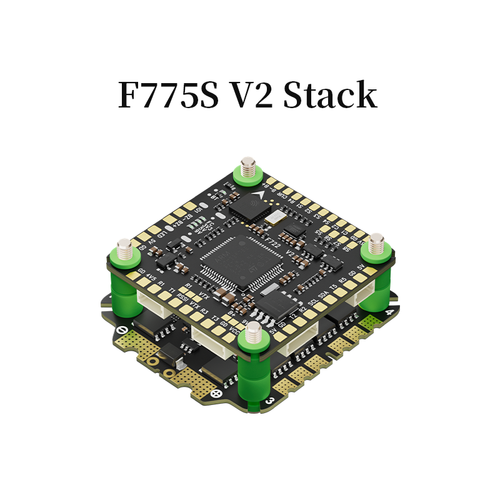

Aocoda-RC F775S V2 Stack

Short Description:

The Aocoda-RC F775S V2 stack pairs an F722 V2 flight controller with a 3075S 8-bit Bluejay 75A 4-in-1 ESC for 3–8S FPV builds.

Product Name: Aocoda-RC F775S V2 Stack
Product Type: F722 Flight Controller and 8-bit 4-in-1 ESC Stack
MCU: STM32F722RET6
Gyroscope: ICM42688P
Barometer: SPL06-001
OSD Chip: AT7456E
Firmware: Betaflight / INAV
Firmware Target: AOCODARCF722V2
ESC Specification: 3075S 8-bit Bluejay 4-in-1 ESC; 75A × 4 continuous, 85A × 4 peak; 3–8S LiPo
Mounting Pattern: M3, 30.5 × 30.5 mm

Send email to us

Product Detail

FAQ

Technical Highlights

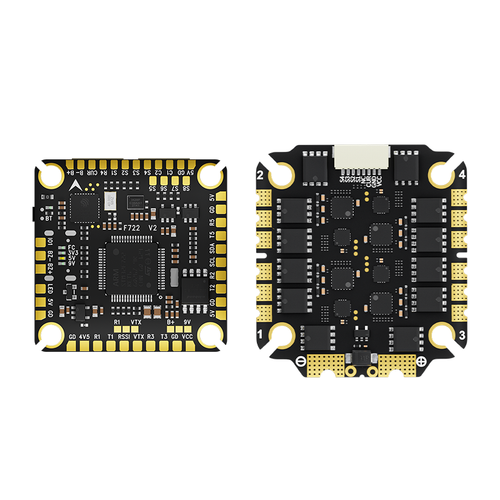

F722 V2 Flight Controller

The stack uses an STM32F722RET6 flight controller with an ICM42688P gyroscope, SPL06-001 barometer, AT7456E OSD chip, and 16 MB blackbox memory.

3075S 8-bit Bluejay ESC

The included 4-in-1 ESC supports 3–8S LiPo input and is rated at 75A per channel continuous and 85A per channel peak. Its specified firmware is Bluejay D_X_30_v0.21.1-RC1-hex.

FPV Build Interfaces

The flight controller provides five UARTs, eight motor outputs, analog OSD support, dual-camera connections, LED strip support, and a buzzer connection.

30.5 × 30.5 mm Mounting

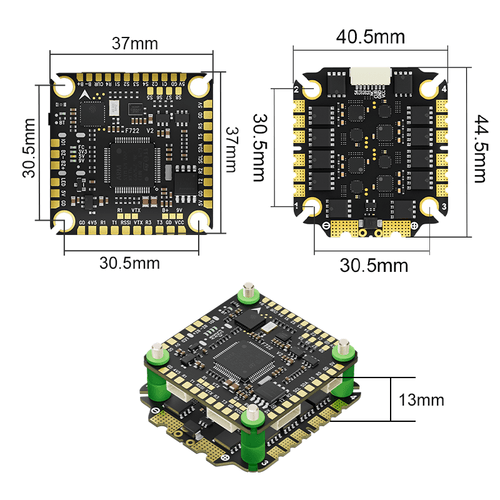

Both boards use an M3 30.5 × 30.5 mm mounting pattern. The supplied drawings specify a 13 mm assembled stack height.

Flight Controller Specifications

Flight Controller	Aocoda-RC F722 V2 FC
MCU	STM32F722RET6
Gyroscope	ICM42688P
Barometer	SPL06-001
OSD Chip	AT7456E
Blackbox Memory	16 MB
Firmware	Betaflight / INAV
Firmware Target	AOCODARCF722V2
UARTs	5
Motor Outputs	8
BEC Outputs	5V / 2.5A and 9V / 2.5A
Board Dimensions	37 × 37 mm
Board Weight	9.4 g

ESC Specifications

ESC Model	3075S 8-bit 4-in-1 ESC
Firmware	Bluejay D_X_30_v0.21.1-RC1-hex
Input	3–8S LiPo
Continuous Current	75A × 4
Peak Current	85A × 4; peak duration is not specified
Input Signal	DShot300 / DShot600
Telemetry	Supported
ESC BEC	None
Amperage Meter Setting	Scale 70; offset 0
Board Dimensions	44.5 × 40.5 mm
Board Weight	15.8 g

Physical Specifications

Mounting Pattern	M3, 30.5 × 30.5 mm
Assembled Stack Height	13 mm, according to the supplied drawing
FC Dimensions	37 × 37 mm
ESC Dimensions	44.5 × 40.5 mm

Installation Notes

Use the AOCODARCF722V2 target when preparing compatible flight-controller firmware.
Set the ESC current-meter scale to 70 and offset to 0 as indicated in the supplied wiring diagram; verify readings during setup.
Confirm the VTX supply wiring against the supplied diagram and the voltage requirements of the installed VTX before powering the stack.
The package lists a 35V, 1000 µF capacitor. For an 8S installation, verify capacitor voltage rating and transient-voltage margin before use.
Confirm the ESC is the 3075S 8-bit Bluejay version before applying ESC firmware or configuration instructions.

Package Contents

F722 V2 flight controller × 1
3075S 8-bit ESC × 1
8-pin SH1.0 connecting cable × 1
M3 × 8 mm shock-absorbing balls × 8
35V, 1000 µF solid-state electrolytic capacitor × 1
XT60 power cord × 1
Nuts × 8
M3 × 30 mm metal screws × 4

FAQ

Which flight controller and ESC are included in the F775S V2 stack?

It combines the F722 V2 flight controller with the 3075S 8-bit Bluejay 4-in-1 ESC.

What battery range does the ESC support?

The 3075S ESC is specified for 3–8S LiPo input. Check the voltage limits of every connected peripheral separately.

Is the ESC rated for 75A or 85A?

Its specified continuous-current rating is 75A per channel. The 85A per-channel figure is a peak rating; a peak-duration condition is not provided.

Which firmware target should be used for the flight controller?

The listed flight-controller target is AOCODARCF722V2. The ESC uses Bluejay firmware, so FC and ESC firmware must be handled separately.

Which motor-control signals are specified for this stack?

The supplied F775S V2 ESC specifications list DShot300 and DShot600.

What is the mounting pattern?

Both boards use an M3 30.5 × 30.5 mm mounting pattern.

Does the ESC provide a BEC?

No. The ESC specification lists no BEC. The flight controller provides 5V / 2.5A and 9V / 2.5A BEC outputs.

B2B Procurement FAQ

How can a buyer confirm the correct F775S V2 version?

Specify the Aocoda-RC F775S V2 stack with the F722 V2 flight controller and 3075S 8-bit Bluejay ESC on the inquiry. Request confirmation of the board markings and included components before ordering.

What accessories are listed with the stack?

The supplied package list includes an 8-pin SH1.0 cable, eight shock-absorbing balls, a 35V 1000 µF capacitor, an XT60 power cord, eight nuts, and four M3 × 30 mm screws, in addition to the FC and ESC. Confirm the final packing list during quotation.

Are MOQ, pricing, and lead time fixed?

These commercial terms are not stated in the supplied product material and must be confirmed during quotation.

Can firmware, labeling, or packaging be customized?

No customization commitment is stated in the supplied material. Provide the requested configuration and quantity so feasibility can be confirmed during quotation.

Are compliance documents or warranty terms available?

The supplied material does not establish specific certifications or warranty terms. Request the applicable documents and terms during quotation.
