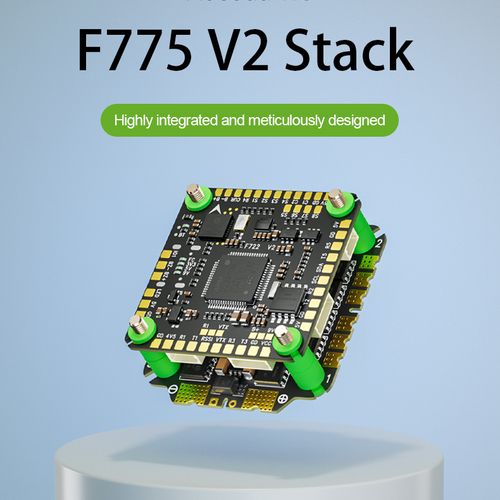

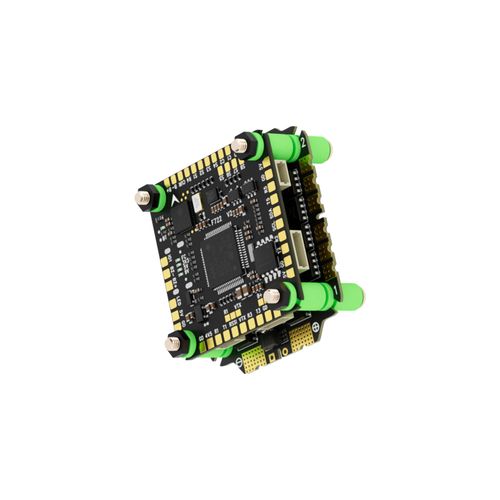

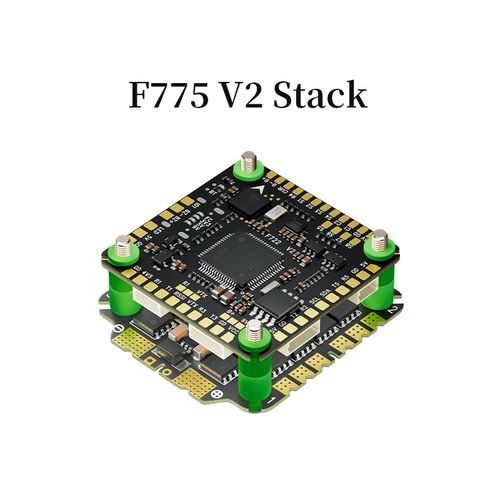

Aocoda-RC F775 V2 Stack

Short Description:

The Aocoda-RC F775 V2 stack combines an F722 V2 flight controller and 3075 V2 32-bit AM32 75A 4-in-1 ESC for 3-8S FPV builds.

Product Name: Aocoda-RC F775 V2 Stack
Product Type: F722 Flight Controller and 4-in-1 ESC Stack
MCU: STM32F722RET6, 216 MHz, 512 KB Flash
Gyroscope: ICM42688P (SPI1)
Barometer: SPL06-001 (I2C)
OSD Chip: AT7456E (SPI2)
Firmware: Betaflight / INAV / ArduPilot (ChibiOS)
Firmware Target: AOCODARCF722V2
ESC Specification: 3075 V2 32-bit AM32 4-in-1 ESC; 75A continuous ×4, 85A peak ×4; 3–8S LiPo
Mounting Pattern: M3, 30.5 × 30.5 mm

Send email to us

Product Detail

FAQ

Technical Highlights

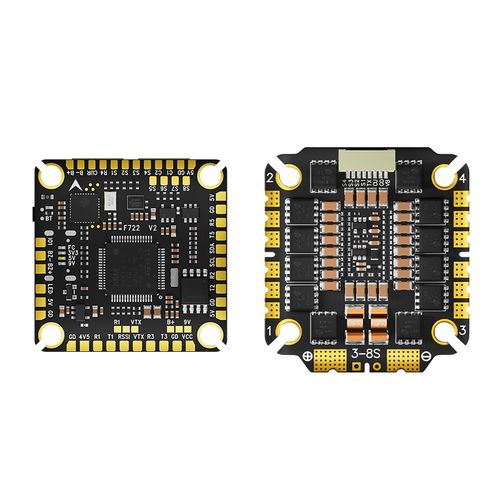

F722 V2 Flight Controller

The flight controller combines an STM32F722RET6 processor with an ICM42688P gyroscope, SPL06-001 barometer, AT7456E OSD chip and 16 MB of blackbox memory.

3075 V2 32-bit AM32 ESC

The 4-in-1 ESC is specified for 3–8S LiPo input, with 75A continuous current and 85A peak current per motor channel. A duration for the peak rating is not specified.

FPV System Connections

Five UARTs support the receiver, GPS, VTX, ESC and an optional peripheral. The flight controller also provides dual camera inputs and OSD support.

30.5 mm Mounting Pattern

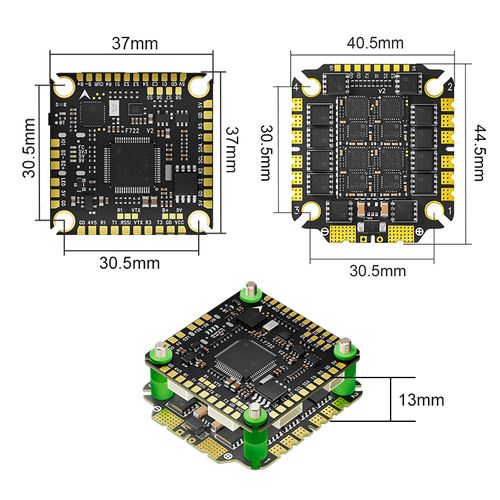

Both boards use M3 holes on a 30.5 × 30.5 mm pattern. The supplied dimensional drawing shows a 13 mm assembled stack height.

Flight Controller Specifications

Flight Controller	F722 V2
MCU	STM32F722RET6, 216 MHz, 512 KB Flash
Gyroscope	ICM42688P (SPI1)
Barometer	SPL06-001 (I2C)
OSD Chip	AT7456E (SPI2)
Blackbox Memory	16 MB (SPI3)
Motor Outputs	8 channels
UARTs	5
BEC Outputs	5V / 2.5A and 9V / 2.5A
FC Input Voltage	12.6–33.6V, 3–8S LiPo
USB Interface	USB Type-C
Supported FC Firmware	Betaflight, INAV and ArduPilot (ChibiOS)
Firmware Target	AOCODARCF722V2
Dimensions	37 × 37 mm
Weight	9.4 g

ESC Specifications

ESC Model	3075 V2 32-bit AM32 4-in-1 ESC
Input Voltage	3–8S LiPo
Continuous Current	75A ×4
Peak Current	85A ×4; peak duration not specified
Input Signals	DShot300, DShot600 and PWM
Telemetry	Supported
Amperage Meter Setting	120, as shown in the supplied wiring diagram
ESC BEC Output	None
Working Humidity	20–95%
Dimensions	44.5 × 40.5 mm
Weight	15.8 g
Mounting Pattern	M3, 30.5 × 30.5 mm

Interfaces and Physical Fit

UART1	Receiver
UART2	GPS
UART3	VTX
UART4	ESC
UART5	Optional peripheral
Camera Inputs	Two inputs with camera switching support
Additional Connections	LED strip, buzzer and user IO
Assembled Stack Height	13 mm, as illustrated in the supplied drawing

Installation Notes

Confirm the supplied ESC is the 3075 V2 32-bit AM32 version before configuring or flashing it.
Use the AOCODARCF722V2 firmware target for the flight controller.
The supplied diagram shows an amperage meter setting of 120. Calibrate current readings on the completed aircraft.
Check the selected VTX supply voltage before connecting the video transmitter; the wiring diagram shows selectable battery and 9V outputs.
For an 8S build, confirm the suitability of the supplied 35V capacitor for the actual power system before installation.

Package Contents

1 × F722 V2 flight controller
1 × 3075 V2 32-bit 4-in-1 ESC
2 × 8-pin SH1.0 connection cables
8 × M3 × 8 mm shock-absorbing balls
1 × 35V 1000µF solid-state electrolytic capacitor
1 × XT60 power cable
8 × Nuts
4 × M3 × 30 mm metal screws

FAQ

Which flight controller and ESC are included?

The F775 V2 stack includes an F722 V2 flight controller and a 3075 V2 32-bit AM32 75A 4-in-1 ESC.

What battery voltage does the stack support?

The supplied 3075 V2 ESC specifications state 3–8S LiPo input. Confirm the installed ESC version and power components before building an 8S system.

What are the ESC current ratings?

Each of the four channels is specified for 75A continuous current and 85A peak current. The manufacturer does not provide a peak-current duration in the cited specifications.

Which flight controller firmware target should I select?

Select AOCODARCF722V2. The flight controller is listed for Betaflight, INAV and ArduPilot (ChibiOS) using this target.

What is the ESC current-meter setting?

The supplied wiring diagram shows an amperage meter setting of 120. Calibrate current sensing after installation for accurate readings.

What mounting pattern and board sizes does it use?

Both boards use M3 holes on a 30.5 × 30.5 mm pattern. The flight controller measures 37 × 37 mm and the ESC measures 44.5 × 40.5 mm.

What is included in the package?

The supplied package list includes the flight controller, ESC, two 8-pin SH1.0 cables, eight shock-absorbing balls, one 35V 1000µF capacitor, one XT60 power cable, eight nuts and four M3 × 30 mm screws.

B2B Procurement FAQ

How should this model be specified on a purchase order?

Specify “Aocoda-RC F775 V2 Stack, F722 V2 FC plus 3075 V2 32-bit AM32 75A 4-in-1 ESC, 3–8S, M3 30.5 × 30.5 mm.”

Which technical details should be confirmed before a bulk order?

Confirm the exact 3075 V2 ESC hardware and approved firmware, the required Bluetooth option, the intended battery voltage, package contents and order quantity during quotation.

Can the listed ESC firmware filename be used for every F775 V2 batch?

The supplied material includes a firmware filename containing “60A,” although this stack uses a 75A ESC. Request the firmware approved for the specific 3075 V2 hardware batch before flashing.

What are the MOQ, price and lead time?

MOQ, unit price, stock status and lead time must be confirmed during quotation.

Are OEM packaging, samples or certificates available?

The supplied material does not establish these options. Availability and terms must be confirmed during quotation.
