The complete F760 V2 stack should be operated with a 3–6S LiPo battery because the included 3060 ESC is rated for 3–6S operation. The standalone F722 V2 flight controller supports 3–8S input.

Select AOCODARCF722V2. The flight controller is specified for Betaflight, INAV and ArduPilot ChibiOS firmware using this target.

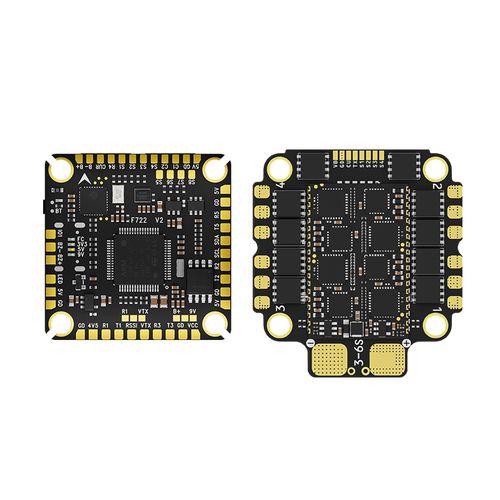

The flight controller uses an ICM42688P gyroscope, SPL06-001 barometer and AT7456E OSD chip. It also includes 16 MB of blackbox memory.

The 3060 32-bit 4-in-1 ESC is specified for 60A continuous current per motor channel. A verified peak-current rating is not provided in the supplied material.

Yes. The supplied specifications list telemetry support together with DShot300, DShot600, bidirectional DShot and PWM input signals.

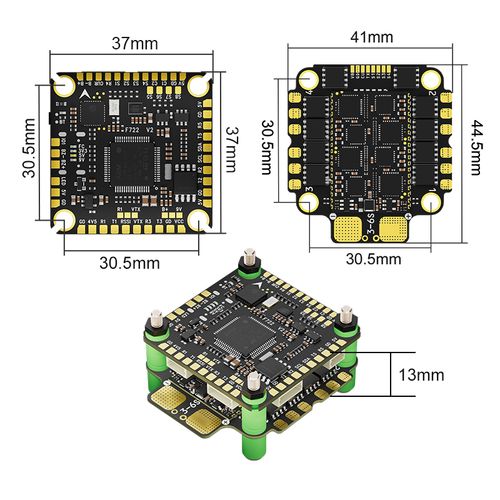

The flight controller and ESC use an M3 30.5 × 30.5 mm mounting pattern. The flight controller measures 37 × 37 mm, while the ESC measures 41 × 44.5 mm.

The flight controller supports receiver systems including ELRS, CRSF, S.BUS, FrSky, Futaba, FlySky, TBS Crossfire and DSMX. UART1 is identified as the receiver connection in the supplied wiring diagram.

Yes. The board provides analog video connections, dual camera inputs and DJI FPV OSD support through an available UART. Confirm the required wiring and supply voltage for the selected video system before installation.

The supplied package list includes one F722 V2 flight controller, one 3060 60A 4-in-1 ESC, one 8-pin SH1.0 cable, eight shock-absorbing balls, one 35V 1000µF capacitor, one XT60 power cable, eight nuts and four M3 × 30 mm screws.

Please confirm the exact F760 V2 model, Bluetooth or non-Bluetooth option, flight-controller firmware target, ESC firmware, required quantity and package configuration during quotation.

They are separate product options on the manufacturer listing. The required version should be stated clearly in the purchase specification and confirmed before the order is finalized.

MOQ, pricing, stock status and production lead time depend on the requested quantity and product variant and must be confirmed during quotation.

OEM branding, labeling, manuals and custom packaging are not established by the supplied product material. Availability and any applicable order requirements must be confirmed during quotation.

Request the required firmware version, AOCODARCF722V2 target information, ESC firmware reference and wiring documentation as part of the quotation so that document availability can be confirmed for the ordered batch.

Sample availability, certificates, warranty coverage and after-sales terms are not specified in the supplied files and must be confirmed during quotation.

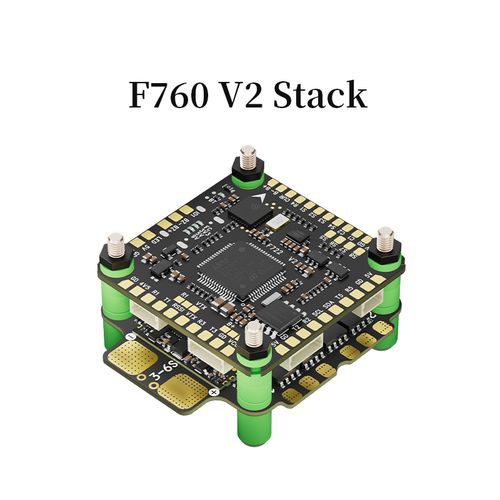

Purchase documents should specify “Aocoda-RC F760 V2 Stack, F722 V2 FC plus 3060 AM32 60A 4-in-1 ESC.” The 3060 60A ESC designation is an important identifier because the F765-series stack uses a different ESC specification.
