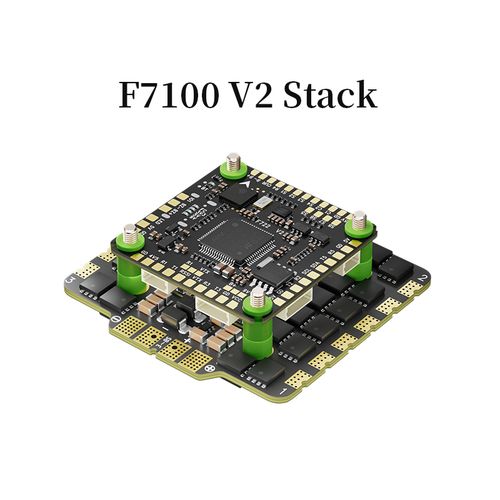

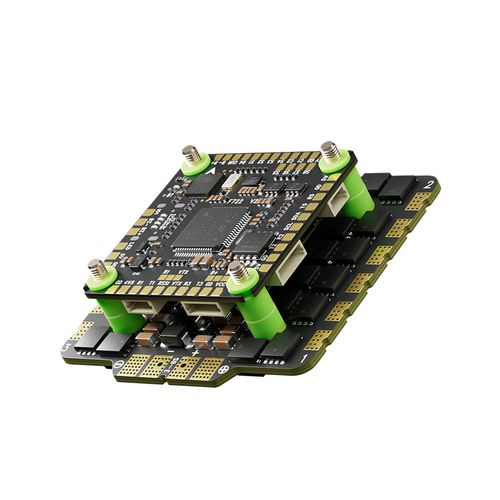

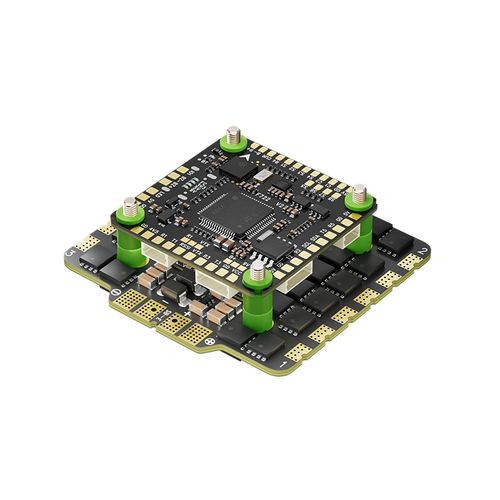

Aocoda-RC F7100 V2 Stack

Short Description:

The Aocoda-RC F7100 V2 stack combines an F722 V2 flight controller with a 30100 32-bit AM32 100A 4-in-1 ESC for 3–8S FPV builds.


  • Product Name: Aocoda-RC F7100 V2 Stack
  • Product Type: F722 Flight Controller and 32-bit 4-in-1 ESC Stack
  • MCU: STM32F722RET6
  • Gyroscope: ICM42688P
  • Barometer: SPL06-001
  • OSD Chip: AT7456E
  • Firmware: Betaflight / INAV
  • Firmware Target: AOCODARCF722V2
  • ESC Specification: 30100 32-bit AM32 4-in-1 ESC; 100A × 4 continuous, 120A × 4 peak; 3–8S LiPo
  • Mounting Pattern: M3, 30.5 × 30.5 mm

Product Detail

FAQ

Technical Highlights

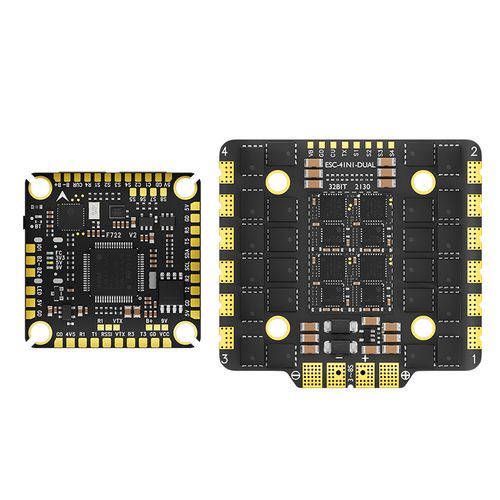

F722 V2 Flight Controller

The flight controller uses an STM32F722RET6 MCU, ICM42688P gyroscope, SPL06-001 barometer, AT7456E OSD chip, and 16 MB blackbox memory.

30100 32-bit AM32 ESC

The 4-in-1 ESC supports 3–8S LiPo input and is rated for 100A per channel continuous current and 120A per channel peak current. A peak-duration condition is not specified.

FPV Build Interfaces

The flight controller provides five UARTs, eight motor outputs, dual-camera connections, OSD support, LED strip support, and a buzzer connection.

30.5 × 30.5 mm Mounting

The flight controller and ESC use an M3 30.5 × 30.5 mm mounting pattern. Confirm the ESC's outer dimensions before finalizing frame clearance.

Flight Controller Specifications

Flight ControllerF722 V2 FC
MCUSTM32F722RET6
GyroscopeICM42688P
BarometerSPL06-001
OSD ChipAT7456E
Blackbox Memory16 MB
FirmwareBetaflight / INAV
Firmware TargetAOCODARCF722V2
UARTs5
Motor Outputs8
BEC Outputs5V / 2.5A and 9V / 2.5A
Dimensions37 × 37 mm
Weight9.4 g

ESC Specifications

ESC Model30100 32-bit 4-in-1 ESC
ESC FirmwareAM32
Input Voltage3–8S LiPo
Continuous Current100A × 4
Peak Current120A × 4; peak duration is not specified
Listed Input SignalsDShot300 / DShot600 and PWM in the supplied F7100 V2 parameter image
Onboard AmmeterSupported
TelemetrySupported
Weight33 g

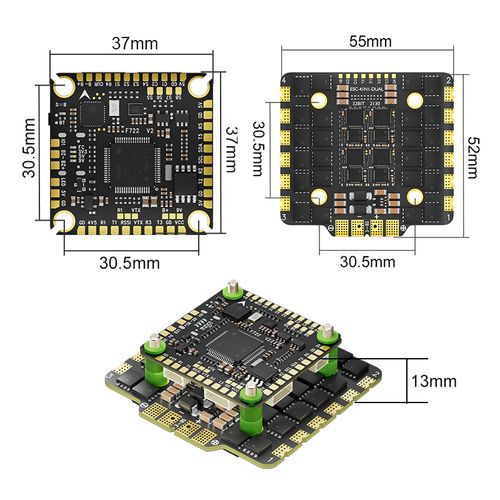

Physical Specifications

Mounting PatternM3, 30.5 × 30.5 mm
Flight Controller Dimensions37 × 37 mm
ESC Outer DimensionsConfirm for the supplied 30100 board before mechanical integration; the available sources disagree.

Installation Notes

  • Confirm that the delivered ESC is the 30100 variant before applying the 100A continuous and 120A peak ratings.

  • Use the AOCODARCF722V2 target when preparing compatible flight-controller firmware. Configure the flight controller and AM32 ESC separately.

  • Confirm the correct current-meter scale for the delivered ESC before relying on displayed current readings; the supplied stack sheet and manufacturer's grouped ESC page give different values.

  • Check the VTX supply wiring against the supplied diagram and the voltage requirement of the installed VTX before applying power.

  • The listed capacitors are rated 35V. For an 8S installation, verify capacitor voltage rating and transient-voltage margin before use.

Package Contents

  • F722 V2 flight controller × 1

  • 30100 32-bit ESC × 1

  • 8-pin SH1.0 connecting cables × 2

  • M3 × 8 mm shock-absorbing balls × 8

  • 35V, 1000 µF solid-state electrolytic capacitors × 2

  • XT90 power cord × 1

  • Nuts × 8

  • M3 × 30 mm metal screws × 4

FAQ

Which flight controller and ESC are included in the F7100 V2 stack?

The supplied packing list identifies an F722 V2 flight controller and a 30100 32-bit AM32 4-in-1 ESC.

What are the 30100 ESC current ratings?

The 30100 variant is specified for 100A per channel continuous current and 120A per channel peak current. The peak-duration condition is not stated.

What battery range is listed for the stack?

The ESC is listed for 3–8S LiPo input. Check the voltage limits of connected peripherals separately.

Which flight-controller firmware target is listed?

The listed F722 V2 target is AOCODARCF722V2. The ESC uses AM32 and requires separate configuration.

Which motor-control signals are listed in the supplied F7100 V2 specifications?

The supplied ESC parameter image lists DShot300, DShot600, and PWM.

What mounting pattern does the stack use?

The flight controller and ESC use an M3 30.5 × 30.5 mm mounting pattern. Confirm the ESC's outer dimensions before finalizing frame clearance.

Is the current-meter scale confirmed for this ESC?

Not conclusively. The supplied F7100 V2 material gives 76, while the manufacturer's grouped ESC page gives 70. Confirm the value for the delivered board and verify current readings during setup.

B2B Procurement FAQ

What should be confirmed before ordering the F7100 V2 stack?

Specify the F722 V2 flight controller and 30100 32-bit AM32 ESC. Request confirmation of the ESC marking, outer dimensions, and current-meter setting for the supplied batch.

What accessories are listed with the stack?

The supplied list includes two 8-pin SH1.0 cables, eight shock-absorbing balls, two 35V 1000 µF capacitors, one XT90 power cord, eight nuts, and four M3 × 30 mm screws, in addition to the FC and ESC. Confirm the final packing list during quotation.

Are MOQ, pricing, and lead time fixed?

These commercial terms are not established by the supplied material and must be confirmed during quotation.

Can firmware, labeling, or packaging be customized?

The supplied material does not establish a customization commitment. Provide the requested specification and quantity for feasibility confirmation during quotation.

Are certifications and warranty terms available?

No specific certification or warranty term is established by the supplied material. Request the applicable documents and terms during quotation.
