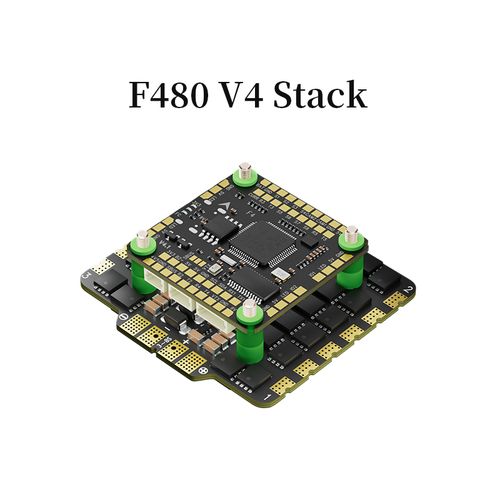

Aocoda-RC F480 V4 F405 V4 80A AM32 FPV Stack

Short Description:

Aocoda-RC F480 V4 stack combines an F405 V4 flight controller with a 3080 32-bit 80A 4-in-1 ESC for 3-6S high-current FPV builds.

Product Name: Aocoda-RC F480 V4 F405 V4 80A AM32 FPV Stack
Product Type: F405 Flight Controller and 32-bit 4-in-1 ESC Stack
MCU: STM32F405RGT6, 168 MHz, 1 MB Flash
Gyroscope: ICM42688P (SPI1)
Barometer: SPL06-001 (I2C1)
OSD Chip: AT7456E (SPI2)
Firmware: Betaflight, INAV and ArduPilot (ChibiOS)
Firmware Target: AOCODARCF405V3
ESC Type: 3080 32-bit AM32 80A 4-in-1 ESC
Input Voltage: 3–6S LiPo

Send email to us

Product Detail

FAQ

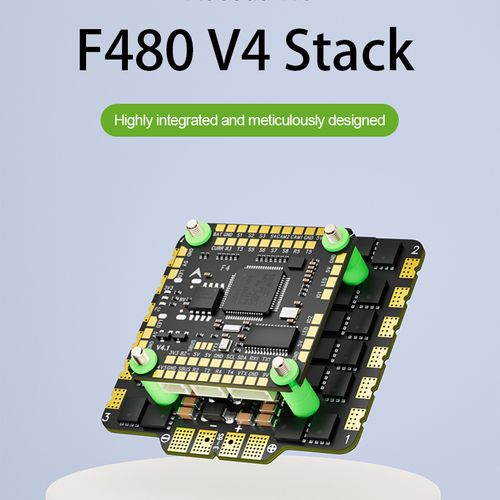

Technical Highlights

STM32F405 Flight Control Platform

The F405 V4 flight controller uses an STM32F405RGT6 processor running at 168 MHz with 1 MB flash. It integrates an ICM42688P gyroscope, SPL06-001 barometer, AT7456E OSD and 16 MB blackbox storage.

3080 32-Bit 80A 4-in-1 ESC

The included 3080 ESC provides four 80A continuous-current channels and a specified instantaneous maximum current of 100A per channel. It supports telemetry and onboard current measurement.

Integrated Current Measurement

The ESC includes onboard current measurement. The supplied F480 V4 wiring diagram specifies an amperage-meter scale value of 106 for flight-controller configuration.

Analog and DJI O3 Wiring Support

Dedicated connections are provided for two cameras, an analog VTX, DJI O3, GPS, receivers, a buzzer and an LED strip. CAM1 is enabled by default, while CAM2 can be selected through flight-controller configuration.

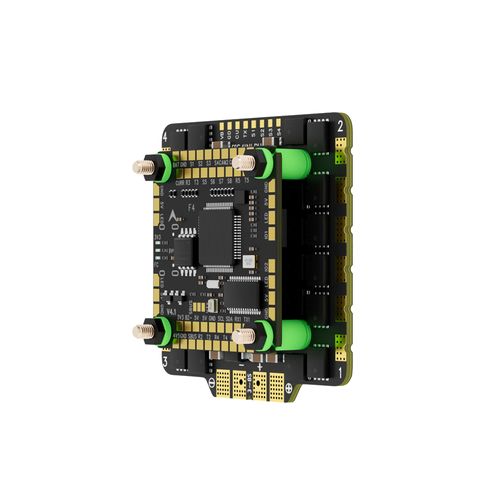

Large High-Current ESC Layout

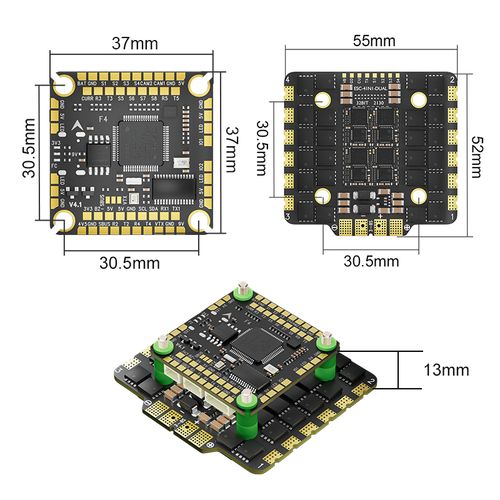

The 3080 ESC measures 55 × 52 mm while retaining an M3 30.5 × 30.5 mm mounting pattern. The supplied dimension drawing shows an assembled stack height of approximately 13 mm.

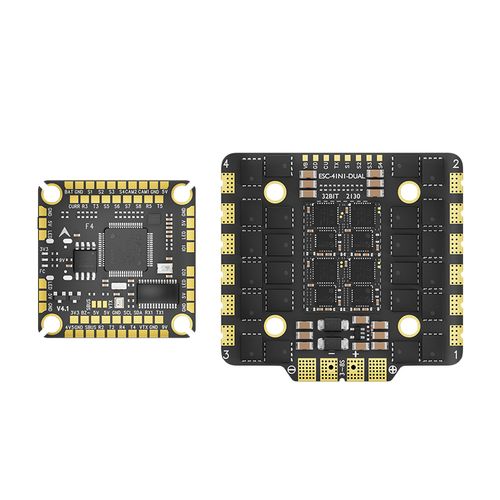

Stack Specifications

Product Name	Aocoda-RC F480 V4 FPV Stack
Stack Components	F405 V4 flight controller and 3080 32-bit 80A 4-in-1 ESC
Input Voltage	3–6S LiPo
Mounting Pattern	M3, 30.5 × 30.5 mm
Approximate Assembled Height	13 mm, according to the supplied dimension drawing

Flight Controller Specifications

Flight Controller	F405 V4
MCU	STM32F405RGT6, 168 MHz, 1 MB flash
Gyroscope	ICM42688P (SPI1)
Barometer	SPL06-001 (I2C1)
OSD	AT7456E (SPI2)
Blackbox	16 MB (SPI3)
Motor Outputs	8 channels
UARTs	5
PWM Outputs	10, including the LED-strip output
BEC Outputs	5V/2.5A and 9V/2.5A
USB Connector	USB Type-C
Firmware	Betaflight, INAV and ArduPilot (ChibiOS)
Firmware Target	AOCODARCF405V3
Dimensions	37 × 37 mm
Weight	9.4 g
Mounting Pattern	M3, 30.5 × 30.5 mm

ESC Specifications

ESC Model	3080 32-bit 4-in-1 ESC
Continuous Current	80A × 4
Instantaneous Maximum Current	100A × 4; duration is not specified
Input Voltage	3–6S LiPo
Telemetry	Supported
Onboard Ammeter	Supported
Amperage Meter Scale	106
Control Protocols	DShot150, DShot300, DShot600, MultiShot, OneShot, ProShot and PWM
ESC Firmware References	AM32_AORC_K_A_F421_2.16.hex or AocodaRC-BL32-4IN1-60A-Rev.32.10; confirm the installed firmware before flashing
Working Humidity	20–95%
Dimensions	55 × 52 mm
Weight	33 g
Mounting Pattern	M3, 30.5 × 30.5 mm

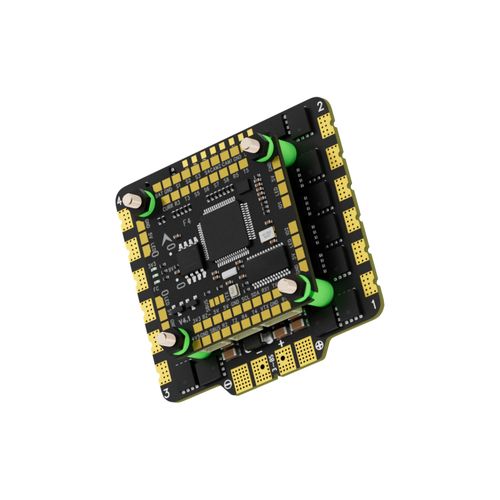

Interfaces and Wiring

UART1 is shown for GPS connection.
UART2 is shown for receiver connection.
UART3 is assigned to the ESC connection.
UART4 is shown for VTX control.
UART5 is selectable for an additional serial device.
Dedicated connections are provided for analog VTX and DJI O3 wiring.
Dual camera inputs support CAM1 and CAM2 switching.
Dedicated buzzer and addressable LED-strip connections are provided.
The SBUS pad can be configured for DJI O3 use, while the VTX pad can be configured for analog VTX use.

Package Contents

1 × F405 V4 flight controller
1 × 3080 32-bit ESC
1 × 8-pin SH1.0 mm reverse connection cable
8 × M3 × 8 mm shock-absorbing balls
2 × 35V 1000µF solid-state electrolytic capacitors
1 × XT90 power cable
8 × Nuts
4 × M3 × 30 mm metal screws

Installation Notes

Use the 3–6S input range specified for the complete F480 V4 stack.
Install both supplied 35V 1000µF capacitors according to the polarity and wiring shown in the supplied diagram.
Check the voltage of each power pad before connecting the camera, VTX, receiver or another peripheral.
Verify the installed ESC firmware and production batch before applying a firmware update.
Use the amperage-meter scale value of 106 with the current-sensing arrangement shown in the supplied diagram.
Confirm that the selected motors, propellers, battery and power connector remain within the stated electrical ratings.

FAQ

What flight controller and ESC are included in the F480 V4 stack?

The stack includes one F405 V4 flight controller and one 3080 32-bit 80A 4-in-1 ESC.

What battery voltage should be used with the complete stack?

The product-specific ESC specification and F480 V4 product listing specify a 3–6S LiPo input range. This complete-stack rating should be followed even though the flight controller itself supports a wider range and some PCB artwork shows a different marking.

What is the difference between continuous and instantaneous current?

The ESC is specified for 80A continuous current per channel. The stated 100A per channel value is an instantaneous maximum, and no supported duration is provided in the supplied material.

What current-sensor scale should be entered?

The supplied F480 V4 wiring diagram specifies an amperage-meter scale value of 106.

Which ESC firmware should be flashed?

The supplied material lists AM32_AORC_K_A_F421_2.16.hex and AocodaRC-BL32-4IN1-60A-Rev.32.10 as firmware references. Confirm the firmware installed on the production batch before flashing either file.

Which flight-controller firmware target is required?

The F405 V4 flight controller uses the AOCODARCF405V3 target for Betaflight, INAV and ArduPilot (ChibiOS).

Why are two capacitors included?

The supplied package list includes two 35V 1000µF solid-state electrolytic capacitors, and the wiring diagram shows both capacitors connected at the ESC power input.

Does the stack support analog video and DJI O3 wiring?

Yes. It provides an AT7456E analog OSD, dual camera inputs, analog VTX connections and dedicated wiring shown for the DJI O3 system.
