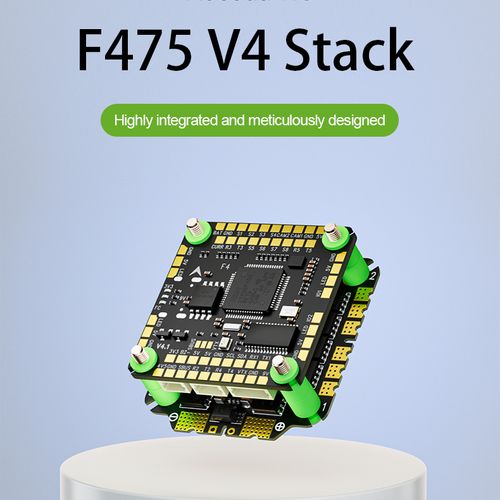

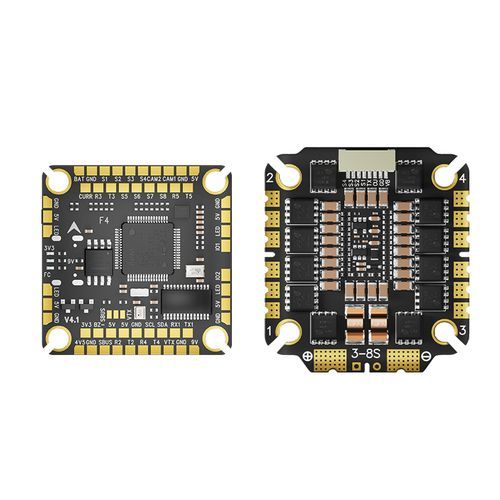

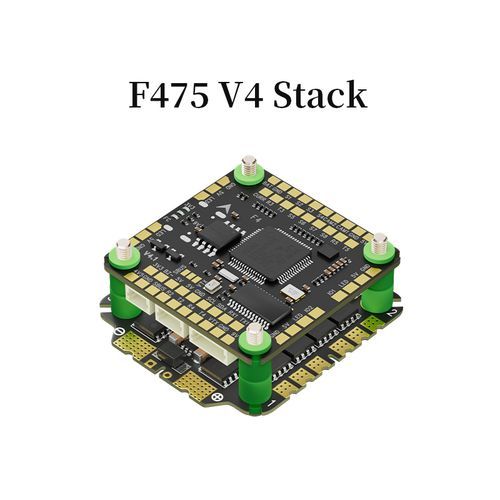

The stack includes one F405 V4 flight controller and one 3075 V2 32-bit 75A 4-in-1 ESC.

The supplied technical sheet and ESC PCB marking specify a 3–8S LiPo input range. Because the current manufacturer product-page title shows a different range, the exact production-batch rating should be confirmed before purchase.

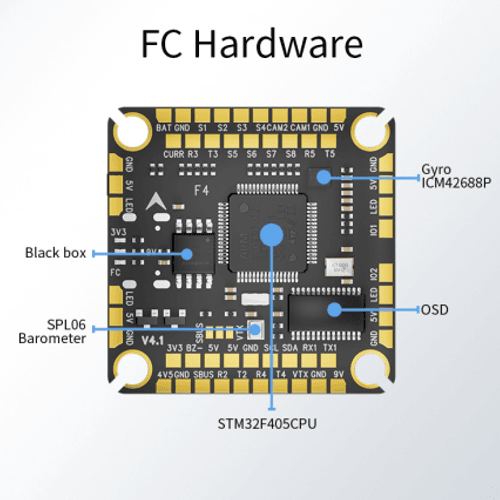

The flight controller uses the AOCODARCF405V3 target for Betaflight, INAV and ArduPilot (ChibiOS).

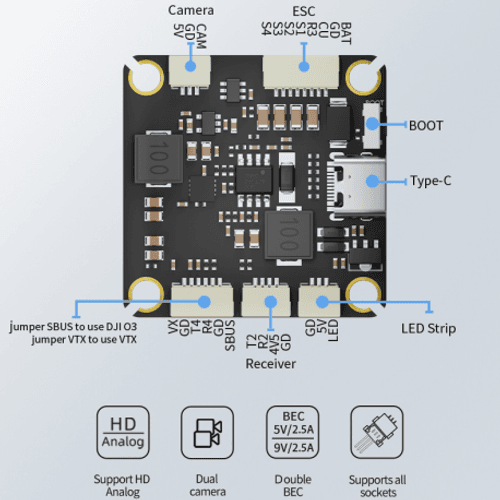

Yes. The flight controller provides analog camera and VTX connections, an AT7456E analog OSD, dual camera inputs and dedicated wiring shown for the DJI O3 system.

The supplied material lists AM32_AORC_K_A_F421_2.16.hex and AocodaRC-BL32-4IN1-60A-Rev.32.10 as alternative firmware references. Confirm the firmware already installed on the production batch before flashing either file.

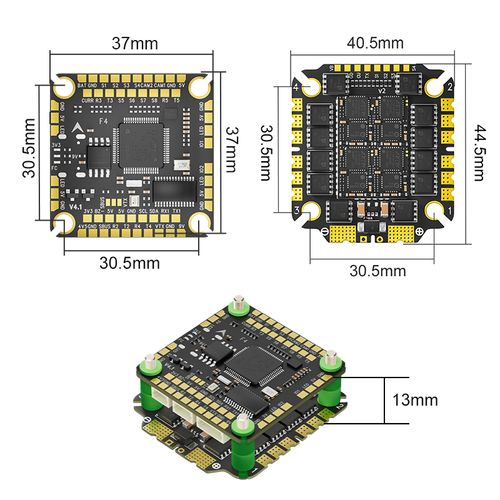

Both boards use an M3 30.5 × 30.5 mm mounting pattern. The flight controller measures 37 × 37 mm and the ESC measures 44.5 × 40.5 mm.

Confirm the required production batch, input-voltage rating, installed ESC firmware, accessory list and packaging requirements during quotation.

Sample availability, minimum order quantity, sample cost and lead time must be confirmed during quotation.

OEM packaging, labeling, branding and documentation requirements must be reviewed and confirmed before an order is accepted.

Provide the intended LiPo cell count, motor and propeller combination, expected current demand, receiver type, video system and required firmware environment.

Required compliance documents, inspection standards, warranty coverage and after-sales terms must be confirmed for the quoted production batch.
